Hybrid Servomotor 2.0Nm

Hybrid Servomotor 2.0Nm

2.0 Nm hybride servomotor

NEMA 23 frame size - 3 phases

4000 ppr encoder resolution

More details...

126,00 € tax incl.

105,00 €tax excl.

MES-M32320

Features

  • 3-Phase NEMA 23 frame size
  • 283 oz-in (0.9 Nm) holding torque
  • Speed range: 0-3,000 RPM
  • Integrated 1,000-line (4,000 CPR) Incremental Encoder with A , A-, B , and B- signals
  • 0.315 inch (8 mm) shaft size
  • Quiet movement and low motor heating

Leadshine ES-M32320 is a 3-phase NEMA 23 stepper motor with 4,000 CPR (1,000-line) incremental encoder (A , A-, B , B- signals). It is built with high quality material and can move smoothly with very low noise and heating.

When driven by Leadshine ES-D508 easy servo drive (closed loop stepper drive), the position loop between 573S20-EC and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.

Leadshine 573S20-EC can also driven by regular open loop 3-phase stepper drives and feed back encoder signals to motion controllers, or external devices.

Specifications

Model: ES-M32320
Frame Size: NEMA 23
Phase: 3
Step Angle: 1.2°
Number of Leads: 3
Holding Torque: 283.0 Oz-In
Encoder Resolution: 4,000 CPR
Shaft Size: 0.315 inch
Phase Current: 5.8 A
Inductance: 1.85 mH
Resistance: 0.62 Ohm
Rotor Inertia: 0.00818 oz-in-sec2
Length: 4.13 inches
Weight: 2.86 lbs

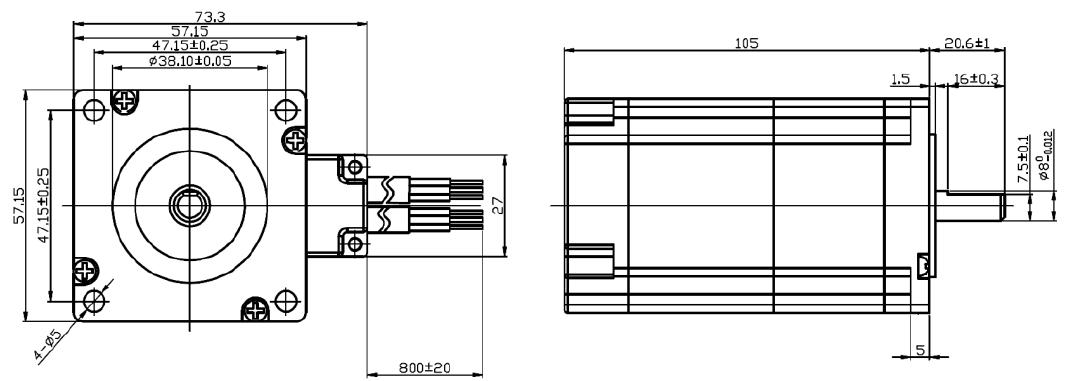

Mechanical Specification

Unit:  mm
1 inch = 25.4 mm

Wiring Diagram

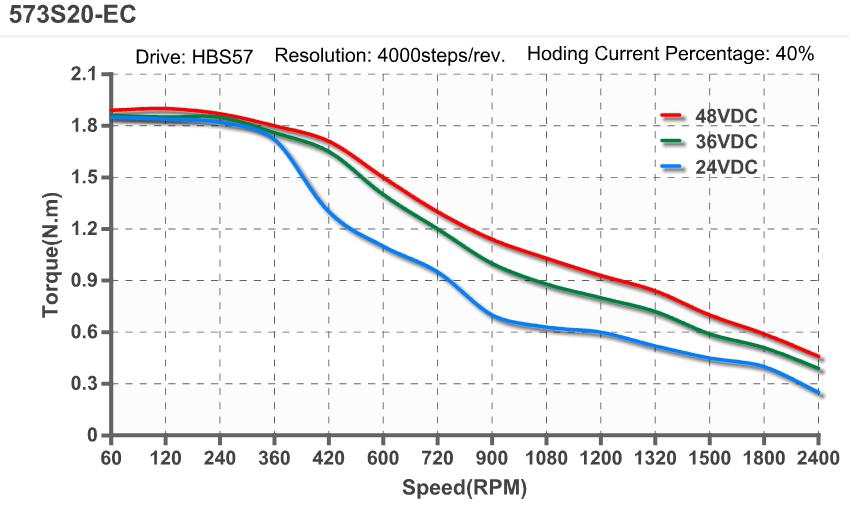

Speed Torque Curve

1 Nm = 141.6 oz-in

  • Encoder resolution 4000 pulses / rev.
  • Shaft diameter 8mm avec méplat
  • Frame size NEMA 23
  • Phases number 3
  • Torque 2.0 Nm
  • Length 97 mm
  • Weight 1.35 Kg
