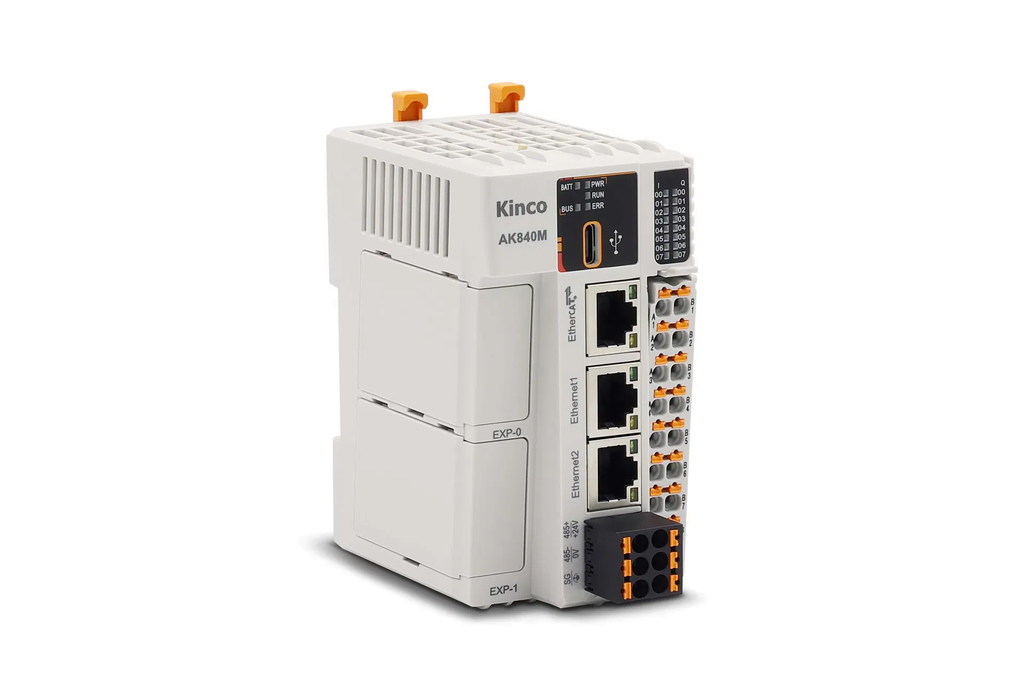

Kinco AK840M Codesys PLC
Kinco 8-Axis PLC
Supports up to 32 axes via EtherCAT
Programmable with Codesys (6 possible methods)
8 digital inputs and 8 digital outputs
RS485, 2 Ethernet, and EtherCAT ports
Modular system: Kinco expansion modules and the PLC communicate via the EtherCAT coupler
Up to 16 expansion modules
Internal Reference:
AK840M-0808DTN
CODESYS software platform, several programming languages, easy to use.
Powerful ARM 4-core 1.5 GHz processor, capable of responding to the richest applications.
- 12mm slice type expansion modules for easy installation
- Kinco expansion modules and the PLC communicate using the coupler (EtherCAT or PROFINET, depending on the additional module chosen) for a transparent connection
- EtherCAT bus: bidirectional, 1 ms synchronization on 8 axes. Maximum 48 axes (depending on version), supports synchronous positioning, electronic cam and interpolation functions.
- Internal bus speed of 6 Mbps for fast control
- Strict EMC testing for safe operation.
Download and install CODESYS from:
https://store.codesys.com/en/
(registration required)
| Item | AK840M |
| Supply Power | 24V DC (-25% ~+20%) |
| CPU Specification | Quad-core 1.4GHz |
| Memory (Ram) | 2GB |
| Storage Capacity | 8Gb |
| Program Capacity | 32MB |
| Use Data Capacity | 128MB |
| Non Volatile memory | 3MB |
| USB | 1* USB C |
| Network | 1* Gigabit Ethernet Port; 2* Fast Ethernet Ports |
| Serial Ports | 2* RS485; 1* USB C |
| Dimensions (mm) | 54 × 98 × 100 |
| Adaptor Power Supply | Supports 24V DC Adapter Power Supply |
| Operating temperature | -20℃ ~+60℃ |
| Axis Capacity | Support 1ms for 8-axis synchronous control, with a maximum support of 32-axis synchronous control |
Téléchargez CODESYS sur :
Accessories
Specifications
| Brand | Kinco |
| Axes | 8 |
| Voltage | 24 V |
| Inputs | 8 |
| Outputs | 8 |
| Interface | Modbus RS485, EtherCAT, Ethernet |
