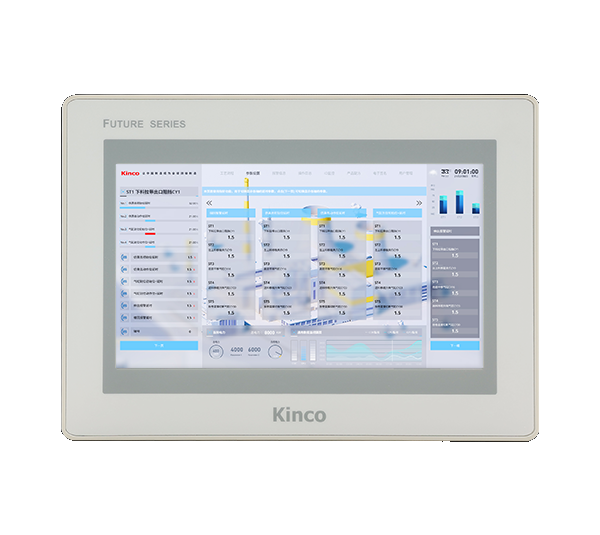

7" Kinco HMI - Ethernet - F2 series - Metal shell
16.77M Color HMI Screen
7" TFT - 800*480 pixels - Touchscreen ARM RISC 32-bit 1800MHz
Contrast: 800:1, Brightness: 400 cd/m²
8GB eMMC Memory + 1GB RAM

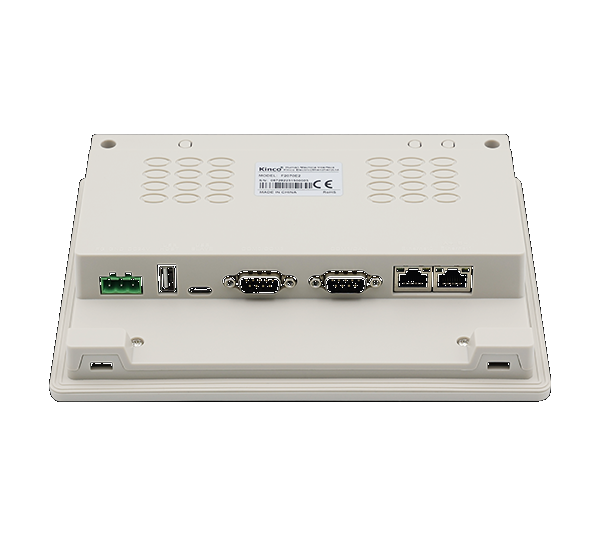

DB9 COM0: RS232/RS485/RS422; COM1: RS485/RS422; COM2: RS232;
Dual Ethernet. USB Host, USB for programming
DC10.8V～DC28V - 7W. Metal case - Gray
Dimensions (mm): 204 * 150 * 37
Cutout (mm): 191mm * 138mm
IP65 Protection
The new Green Series range differs from the previous ones mainly by:
- reduced consumption
- an increased color palette
- un nouvel outil de développement Kinco DTools Pro (gratuit)
- une connectivité Ethernet/Internet complète ( DHCP, NTP, FTP, VNC client et serveur , Mysql....)
L'appareil prend en charge la communication avec plus de 60 modèles d'automates différents, notamment Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (maître et esclave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet et bien d'autres :
ABB AC500 (serial + Ethernet) , Allen Bradley (serial + Ethernet) , BACnet (serial + Ethernet) , Beckhoff Twincat ADS (Ethernet) , Codesys V2 (Ethernet) , Codesys V3 (Ethernet) , Emerson RX3i (Ethernet) , GE SNP (serial) , IDEC MicroSmart (Ethernet only) , IDEC MicroSmart (serial + Ethernet) , Kinco PLC (serial + Ethernet) , Mitsubishi FX (serial + Ethernet) , Mitsubishi Q (serial + Ethernet) , Modbus master and slave (serial + Ethernet) , Omron (serial + Ethernet) , Schneider (serial + Ethernet) , Siemens LOGO! (Ethernet) , Siemens S7-200 (serial + Ethernet) , Siemens S7-300/400 (serial + Ethernet) , Siemens S7-1200/1500 (Ethernet) , Unitronics (serial + Ethernet) , Xinje XC (serial) , Xinje XD (serial + Ethernet) , Xinje XD/XL (serial + Ethernet)
Technical sheet :
- 7.0" TFT 16:9 screen
- Resolution: 1024x600 pixels
- Brightness: 450 cd/m2
- 32-bit RISC CPU 800MHz
- Mémoires 8GB eMMC Memory+ 1GB Ram Memory
- Memory expansion: 1 USB Host
- Ports COM COM0:RS232/RS485/RS422; COM1:RS485/RS422;COM2:RS232;
- 2* Ethernet 10/100/1000 Base-T
- Printer port USB/Serial
- Program download: 1 USB port Slave/Serial/Ethernet
- Expansion port: No
- Digitizer: 4-wire precision resistance network
- Touch function keys
- Audio output: No
- Backlight: LED
- Couleur boîtiergris
- Protection sign: IP65 (front bezel)
- Rated power: 4.2W
- TRated voltage: DC 24V
- Voltage range: 10.8~28VDC
- Max. power interruption: below 3 ms
- Fanless cooling
- Insulation resistance: above 50 mégohms at 500V DC
- Dielectric rigidity: 500VAC 1 minute
- Operating temperature: 0~50℃
- Storage temperature: -10~60℃
- Operating humidity: 10~90% (without condensing)
- Storage humidity: 10~90% (without condensing)
- Shock resistance: 10~25Hz (X,Y,Z direction, 2G, 30 minutes)
- Matière boitîer métal
- 1 USB Host port
- 16.7 millions colors
- Cutout (mm) 192x138
- Dimensions (mm) 204x150x37
Integrated drivers for communication with all following PLCs :
ABB AC500 (serial + Ethernet), Allen Bradley (serial + Ethernet), BACnet (serial + Ethernet), Beckhoff Twincat ADS (Ethernet), Codesys V2 (Ethernet), Codesys V3 (Ethernet), Emerson RX3i (Ethernet), GE SNP (serial), IDEC MicroSmart (Ethernet only), IDEC MicroSmart (serial + Ethernet), Kinco PLC (serial + Ethernet), Mitsubishi FX (serial + Ethernet), Mitsubishi Q (serial + Ethernet), Modbus master and slave (serial + Ethernet), Omron (serial + Ethernet), Schneider (serial + Ethernet), Siemens LOGO! (Ethernet), Siemens S7-200 (serial + Ethernet), Siemens S7-300/400 (serial + Ethernet), Siemens S7-1200/1500 (Ethernet), Unitronics (serial + Ethernet), Xinje XC (serial), Xinje XD (serial + Ethernet), Xinje XD/XL (serial + Ethernet)
Wi-Fi version and 4G version also available on request. Please contact us.
Accessories
Specifications
| Brand | Kinco |
| Voltage | 24 V |
| Screen size | 7 pouces |
| Interface | Modbus RS485, USB, Ethernet |
| Display resolution | 800x480 pixels |
