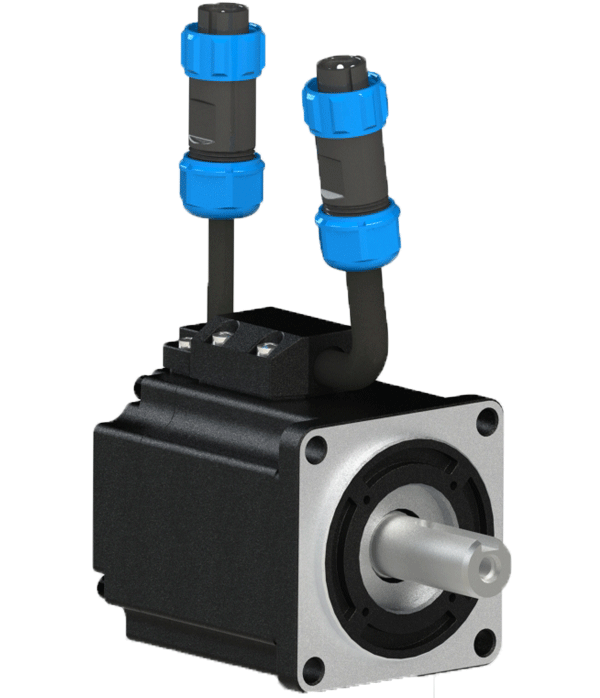

ELVM80100V48xH-M17-HD
●
Rated voltage 48V, rated power 1000W
● Frame 80mm, rated torque 3.19N·m, rated speed 3000r/min
● No Brake
● Insulation class: Class F
● 17 bit magnetic multi-turn absolute encoder
● IP65
● Avec ou sans frein
| Model | ELVM80100V48FH-M17-HD / ELVM80100V48EH-M17-HD |
| Frame Size (mm) | 80 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 1000 |
| Rated Torque (N.m) | 3.2 |
| Peak Torque (N.m) | 9.6 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 28 |
| Peak Current (Amp) | 87 |
| Torque Constant (N.m/Amp) | 0.122 |
| Back EMF Constant (V/krpm) | 7.4 |
| Resistance (Ω) | 0.05 |
| Inductance (mH) | 0.31 |
| Inertia (kg*m2*10-4) | 1.8 |
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 392 |
| Max axial load(N) | 147 |
| IP Rating | IP65 |
| Weight (Kg) | 3.0 / 3.4 |
Specifications
| Brake | Without brake or With brake |
| Brand | Leadshine |
| Torque | 3.2 Nm (9.6 Nm en pointe) |
| Power | 1 KW |
| Voltage | 48 V |
| Shaft diameter | 19 mm |
| Nominal speed | 3000 rpm |
| Frame size | 80 mm |
| Encoder type | 17 bit single turn |
