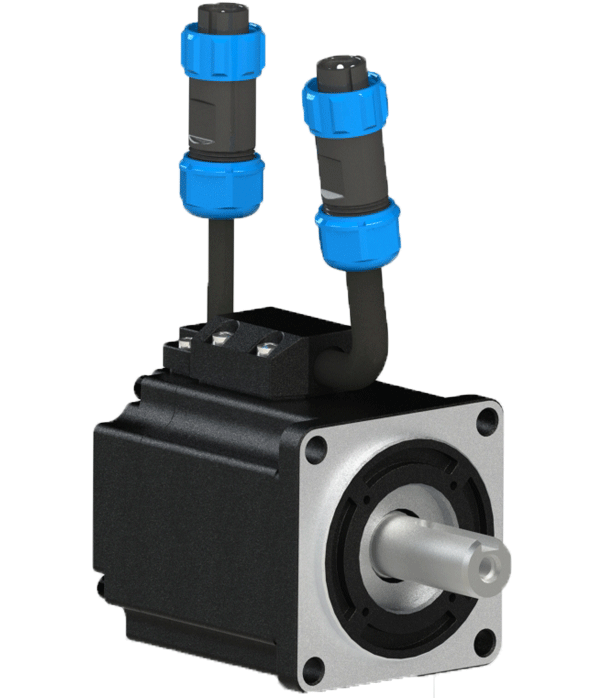

ELVM6060V48xH-M17-HD
● Rated voltage 48V, rated power 600W
● Frame 60mm, rated torque 1.91N·m, rated speed 3000r/min
● With or without brake
● Insulation class: Class F
● 17 bit magnetic multi-turn absolute encoder
● IP65
| Model | ELVM6060V48FH-M17-HD / ELVM6060V48EH-M17-HD |
| Frame Size (mm) | 60 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 600 |
| Rated Torque (N.m) | 1.91 |
| Peak Torque (N.m) | 5.73 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 15 |
| Peak Current (Amp) | 46.5 |
| Torque Constant (N.m/Amp) | 0.141 |
| Back EMF Constant (V/krpm) | 8.5 |
| Resistance (Ω) | 0.16 |
| Inductance (mH) | 0.39 |
| Inertia (kg*m2*10-4) | 0.83 |
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 245 |
| Max axial load(N) | 74 |
| IP Rating | IP65 |
| Weight (Kg) | 2.2 / 2.4 |
Specifications
| Brake | Without brake or With brake |
| Brand | Leadshine |
| Torque | 1.91 Nm (5.73 Nm en pointe) |
| Power | 600 W |
| Current | 15 A |
| Shaft diameter | 14 mm |
| Nominal speed | 3000 rpm |
| Frame size | 60 mm |
| Encoder type | 17 bit magnetic absolute multiturn |
