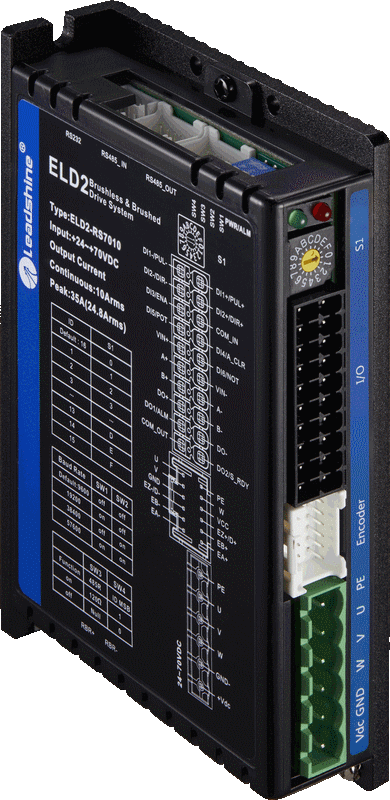

ELD2-RS7010 brushless DC drive 24-70V 10A
ELD2-RS7010 brushless DC drive 24-70V 10A - RS485/Pulses+Dir
Internal Reference:
ELD2-RS7010
ELD2-RS7010
● Main power voltage: 24-70VDC
● Output current: 10Arms continuous; 35A peak
● Pulse+Direction, analog input
● Modbus RTU over RS485. Build-In 16 PR paths
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
| Drive model | ELD2-RS7010 | |
| Size(mm) | 118*79.5*25.5 | |
| Rated power(kW) | 0.4 | |
| Rated current(Arms) | 10 | |
| Peak current(Apeak) | 35 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 10Arms （≤48Vdc） | |
| 7Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | —— |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | —— | |
| Protection rank | IP20 |
Specifications
| Brand | Leadshine |
| Voltage | 24 V |
| Analog inputs | 1 |
| Max. current | 10 A |
| Interface | Modbus RS485 |
