  2. Brushless AC 220V ELM2H motor - 100W - 0.32 Nm - 23-bit optical encoder
Public Pricelist

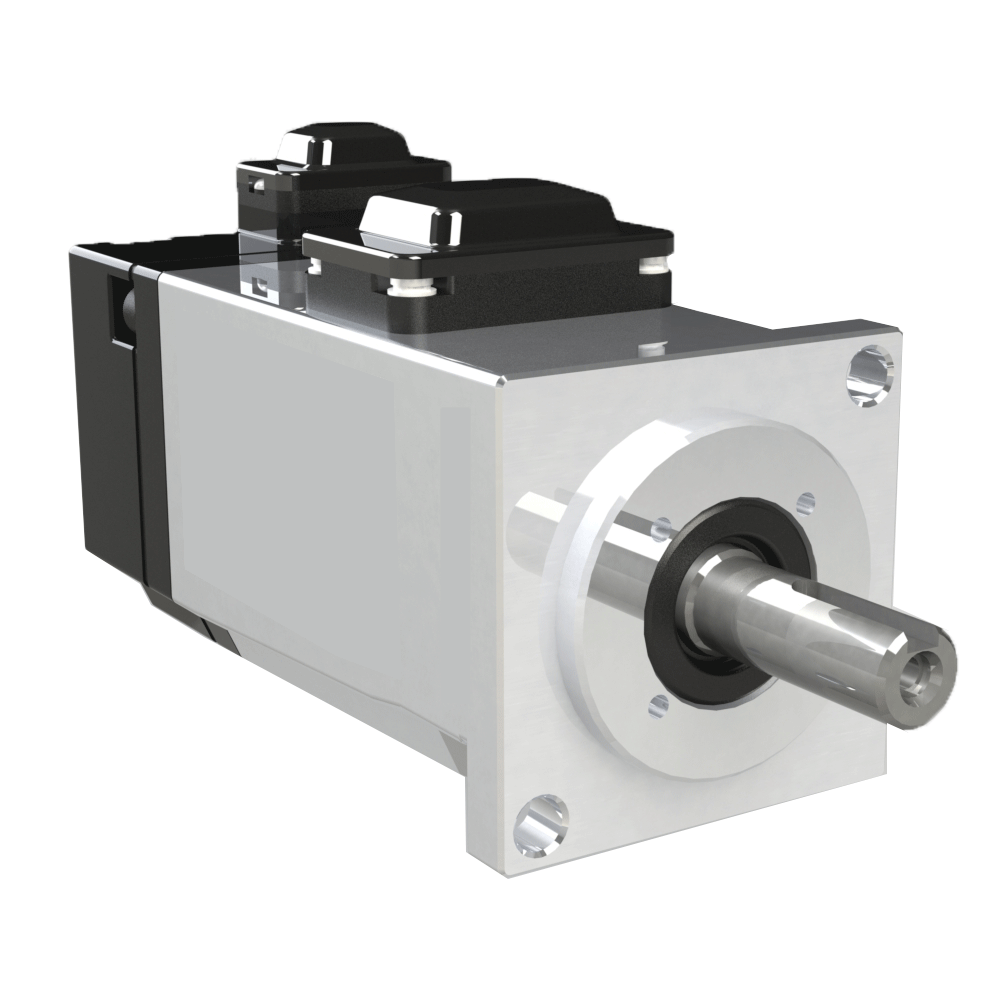

Brushless AC 220V ELM2H motor - 100W - 0.32 Nm - 23-bit optical encoder

0.92A - 3000rpm - 0.32Nm (0.95Nm peak)
23-bit optical encoder.

179.80 € Without Taxes 179.8 EUR 179.80 €

179.80 €

215.76 € 215.76 € with taxes

  • Brand
  • Torque
  • Power
  • Current
  • Shaft diameter
  • Brake
  • Nominal speed
  • Frame size
  • Encoder type

This combination does not exist.

Product Documents

Datasheet ELM2H-0100LA40F.pdf

Internal Reference: ELM2H-0100LA40F


Specifications

Brand Leadshine
Torque 0.32 Nm
Power 100 W
Current 0.92 A
Shaft diameter 14 mm
Brake Without brake
Nominal speed 3000 rpm
Frame size 40 mm
Encoder type 23 bit optique multitours
