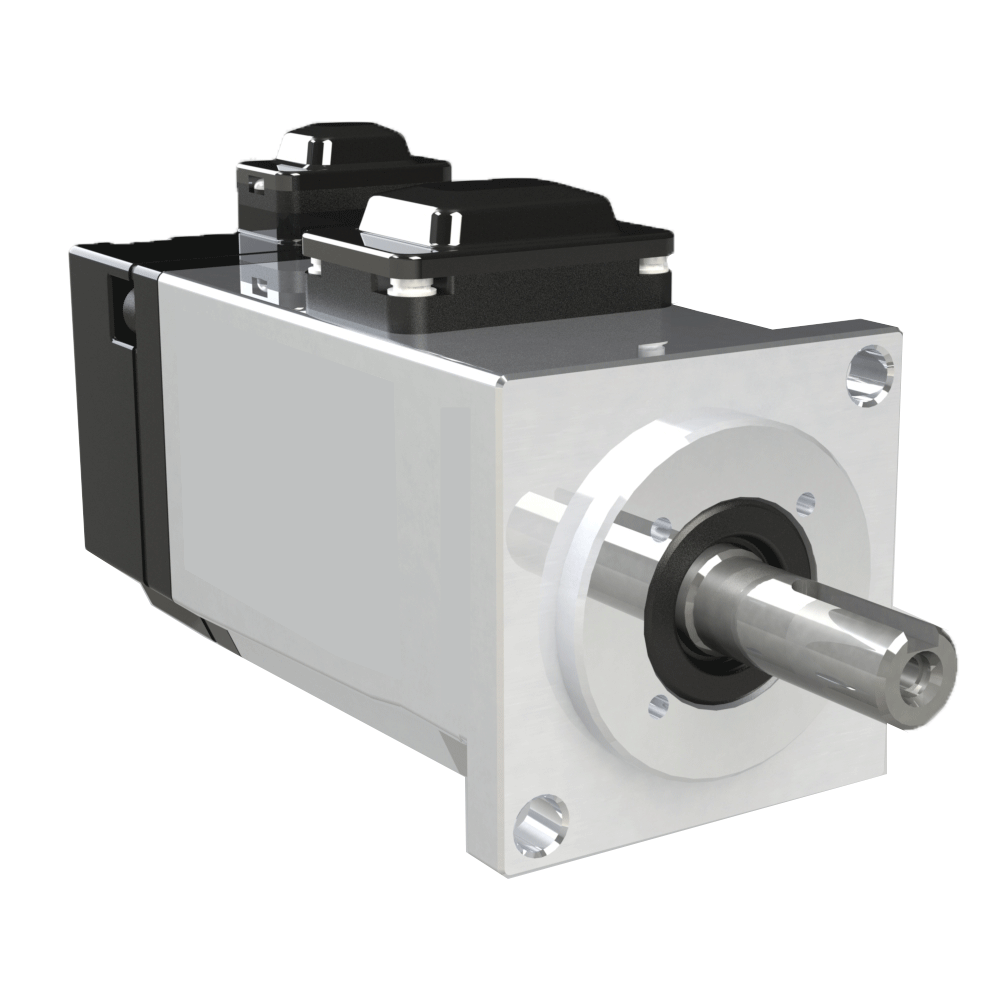

  2. ELM2H Brushless AC motor 220V - 750W - 2.39 Nm - 23bit optical encoder, with brake
Public Pricelist

ELM2H Brushless AC motor 220V - 750W - 2.39 Nm - 23bit optical encoder, with brake

3000 rpm
Nominal torque 2.39 Nm, max 7.17 Nm

283.45 € Without Taxes 283.45 EUR 283.45 €

283.45 €

340.14 € 340.14 € with taxes

  • Brand
  • Torque
  • Power
  • Current
  • Voltage
  • Shaft diameter
  • Brake
  • Nominal speed
  • Frame size
  • Encoder type

This combination does not exist.

Product Documents

Datasheet ELM2H-0750LA80E

Internal Reference: ELM2H-0750LA80E


Specifications

Brand Leadshine
Torque 2.39 Nm (7.17 Nm peak)
Power 750 W
Current 4.2 A
Voltage 230 VAC
Shaft diameter 14 mm
Brake With brake
Nominal speed 3000 rpm
Frame size 80 mm
Encoder type 23 bit optique multitours
