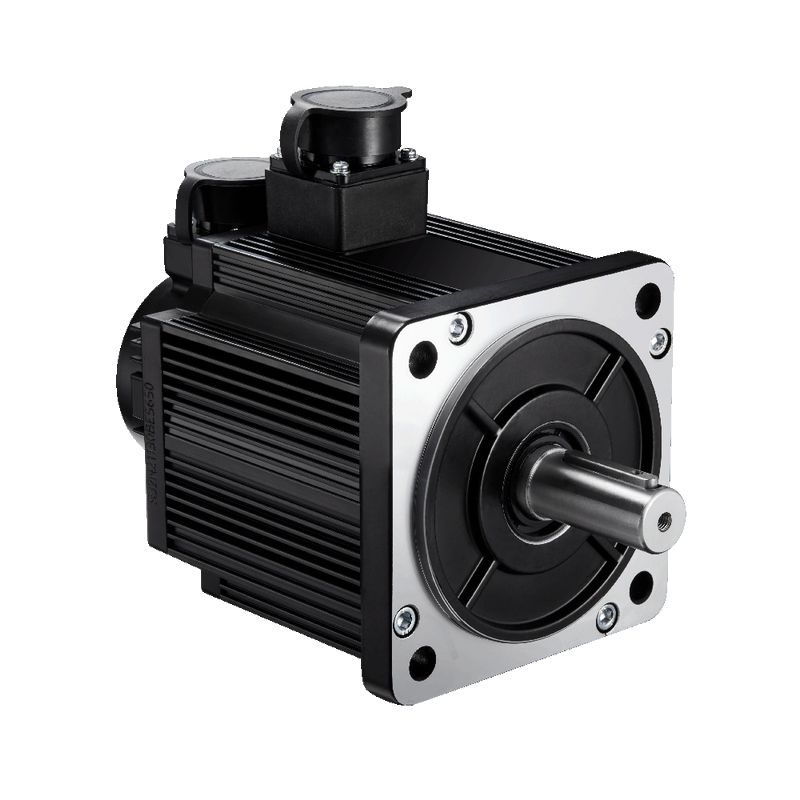

ELVM130120V48FM-M17-HD
- Rated voltage 48VDC, rated power 1200W
- Frame 130 mm, rated torque 3.8 N·m, rated speed 3000 rpm
- No brake
- Insulation class: Class F
- 17-bit multi-turn absolute magnetic encoder
- IP65
| Model | ELVM130120V48FM-M17-HD |
| Frame Size (mm) | 130 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 1200 |
| Rated Torque (N.m) | 3.8 |
| Peak Torque (N.m) | 10 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 30 |
| Peak Current (Amp) | 79 |
| Torque Constant (N.m/Amp) | 0.13 |
| Back EMF Constant (V/krpm) | 8.2 |
| Resistance (Ω) | 0.028 |
| Inductance (mH) | 0.11 |
| Inertia (kg*m2*10-4) | 11.63 |
| Poles | 10 |
| Encoder Type | 17bit absolute |
| IP Rating | IP65 |
| Weight (Kg) | 5.2 |
Specifications
| Brand | Leadshine |
| Torque | 3.8 Nm |
| Power | 1200 W |
| Current | 30 A |
| Voltage | 48 V |
| Shaft diameter | 14 mm |
| Nominal speed | 3000 rpm |
| Frame size | 130 mm |
| Encoder type | 17 bit magnetic absolute multiturn |
