CANopen digital stepper driver - 50V 4.2A Leadshine
CANopen control interface (DS301 V4.02 and DSP 402 V2.01)
CAN ID and baud rate configurable via microswitches.
3 digital inputs, 1 output
Product Documents
Internal Reference:

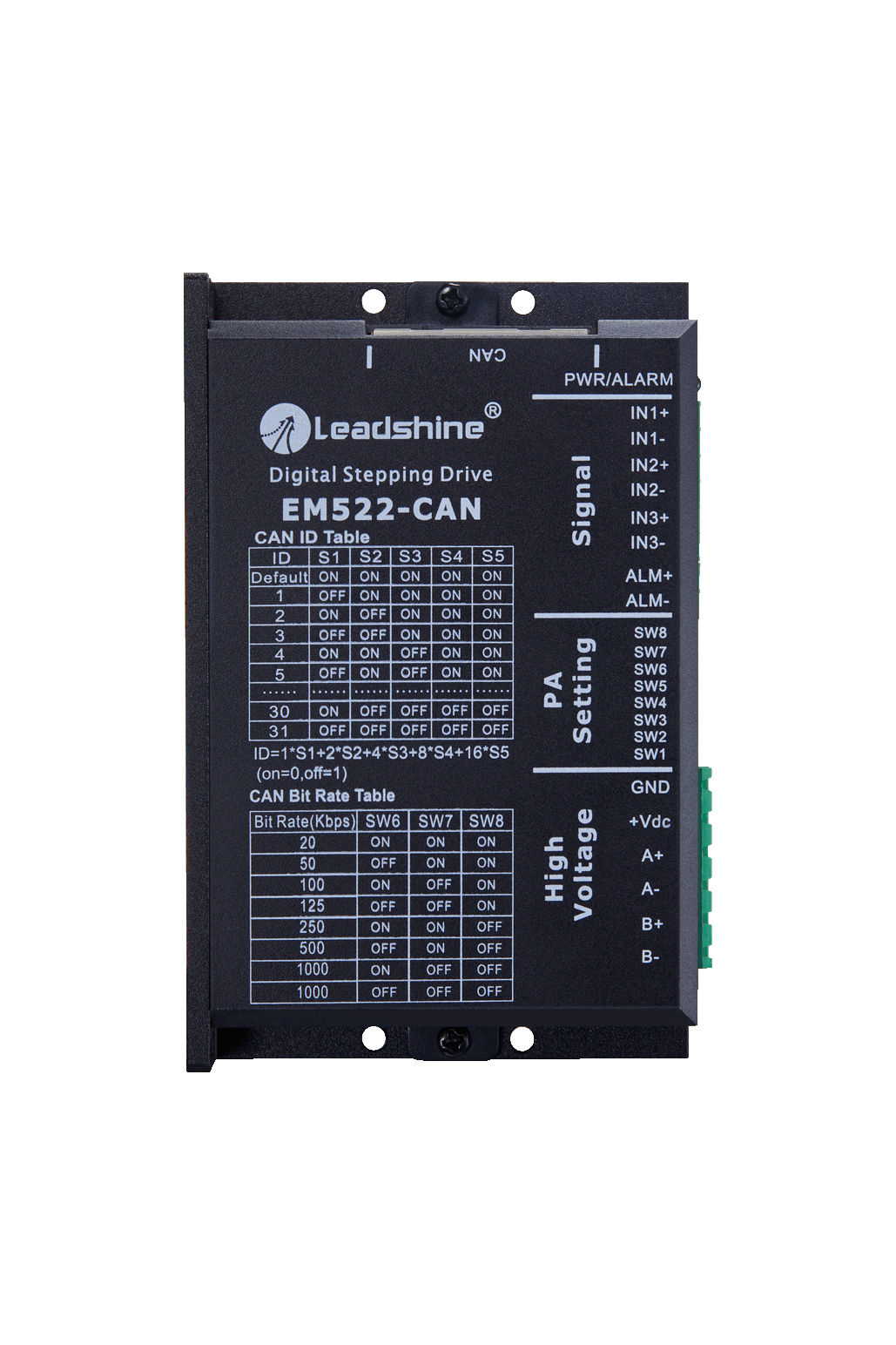

EM522-CAN
● Power supply 20-50VDC
● Output current 0.3-2.2A,
● Support CANopen field bus, standard protocol of DS301 V4.02 and DSP 402 V2.01
● Setting address and the baud rate via DIP switch
● Operates in velocity, position or home mode
● 3 digital inputs and 1 digital output, 5-24VDC
● Over voltage and over current, etc. protections
The EM522-CAN is with CANopen standard protocol of DS301 V4.02 and DSP 402 V2.01. It has excellent performance include enhanced reliability, super-low stepper noise, anti-resonance, low-speed ripple smoothing. Adding CANopen allows the drives not only to support operating modes including Profile Position (PP), Profile Velocity (PV), Homing (HM), etc, but also to build a CANopen networks up to 127 nodes. Therefore, Leadshine EM-CAN series is an ideal choice for field-bus applications, which need high reliability and good performance.
https://www.leadshine.com/upfiles/downloads/bb449b931258c3904f47f01178096e0e_1650880854458.zip
Specifications
| Brand | Leadshine |
| Inputs | 3 |
| Outputs | 1 |
| Min. Voltage | 20 V |
| Max. Voltage | 50 V |
| Max. current | 2.2 A |
| Resolution setting | DIP-switches |
| Interface | CANopen |
