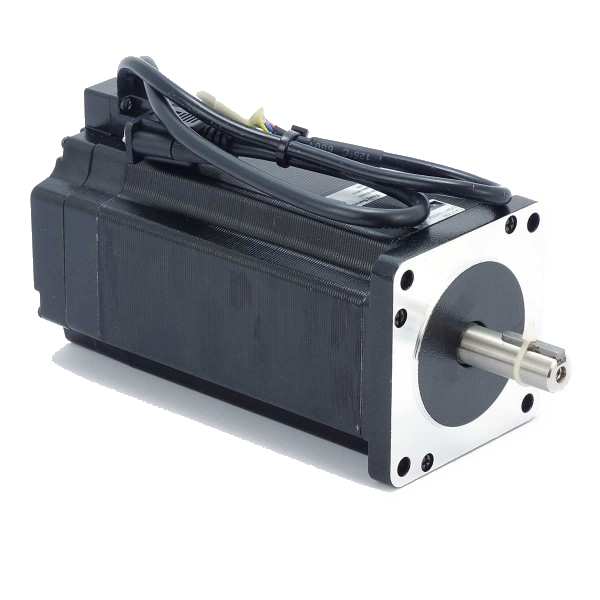

ES-MH33480 closed loop servomotor NEMA 34 - 3 phases - 8Nm

NEMA 34 size 3-phase motor
8Nm holding torque
Speed range from 0 to 2,000 rpm
Integrated incremental encoder of 1000 points (resolution 4000 points per revolution)
14mm shaft
Driver ES-DH2306

256.00 € Without Taxes 256.0 EUR 256.00 €

256.00 €

307.20 € 307.20 € with taxes

  • Brand
  • Brand
  • NEMA
  • Torque
  • Number of phases
  • Shaft diameter
  • Current per phase
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Step angle
  • Rotor inertia
  • Body length
  • Encoder resolution
  • Weight

This combination does not exist.

Product Documents

ES-MH datasheet
You have to login to access this document.

Internal Reference: ES-MH33480

Specifications

  • NEMA 34 size 3-phase motor
  • Holding torque 8Nm
  • Speed range from 0 to 2000 rpm
  • Incremental encoder of 1000 points (resolution 4000 points per revolution), signals A , A-, B , and B-
  • 14mm shaft diameter
  • Fluid and silent movements, reduced heating

When this motor is associated with an ES-DH2306 driver, you have a closed-loop system that protects you from the risks of stalling and loss of steps often encountered in solutions based on stepper motors.

Closed-loop operation also allows a gain in speed and torque of around 30% compared to a comparable solution based on a simple stepper motor.

The ES-DH2306 driver handles regulation management and therefore the encoder. For the control cards, you are always in the presence of a motor driven by Pulses/direction signals.

You also have an error signal (programmable tolerance) sent by the driver in the event of motor blockage.

With this solution, you benefit from the advantages of stepper motors: high torque, simplicity of implementation; and also, the advantages of the servomotor: precision, control.

Specifications

Model: ES-MH33480
Taille NEMA 34
Phases 3
Step angle 1.2°
Number of leads 3
Holding torque 8.0Nm
Encoder resolution 4,000 pulses/revolution
Shaft diameter 14mm
Current 3.0 A
Inductance 18.33 mH
Resistance 2.34 Ohm
Rotor inertia 4 Kg.cm²
Body length 173mm
Weight 5.6Kg

Dimensions

Torque curve

1 Nm = 141.6 oz-in




Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Leadshine, Soprolec
NEMA 34
Torque 8.0 Nm
Number of phases 3
Shaft diameter 14 mm
Current per phase 3 A
Phase resistance (Ohms) 2.34 Ohms
Phase inductance (mH) 18.33 mH
Step angle 1.2°
Rotor inertia 1.4 kg/cm2
Body length 173 mm
Encoder resolution 1000 points (4000 pulses/rotation)
Weight 5.6 kg
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
