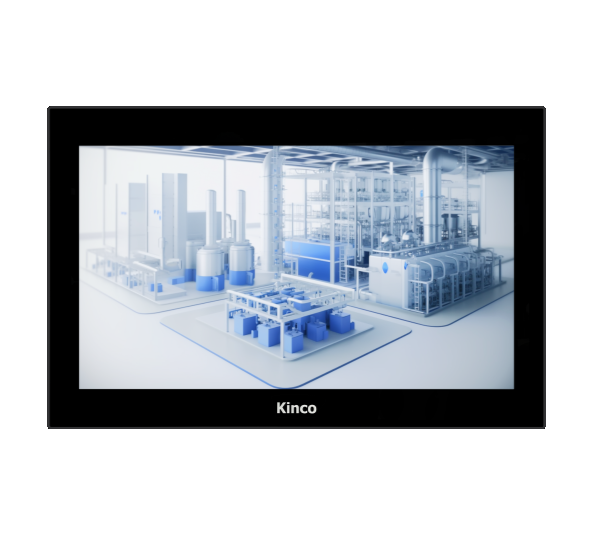

Kinco 10.1" 16:10 HD+ Ethernet *2 capacitive HMI

10.1" TFT HMI display - capacitive touchscreen
16:10 aspect ratio - 1280*800 pixel resolution - 16.7M colors

New design and increased performance
32-bit Quad-core 1.8GHz ARM RISC CPU
8GB eMMC Flash memory storage + 1024MB RAM

New DTools Pro development software:
Download

Display viewing angle 85/85/85/85 (left / right / up / down)
Contrast ratio 800:1
LED backlight. Brightness 350cd/m2
Lifespan >30,000 hours
Metal casing. IP65 front panel.
Memory expansion 1 USB host
Built-in RTC
Printer port USB host / serial port
2* Self-adaptive 10/100/1000MHz Ethernet, full Ethernet / Internet connectivity (DHCP, NTP, FTP, VNC client and server, MySQL, etc.)
Program download USB Slave / U Disk / Ethernet
COM port COM0: RS232 / RS485 / RS422; COM1: RS485; COM2: RS232
Built-in serial port isolation

Overall dimensions: 249*159*32.5mm
Cutout size: 192 x 138 mm

The device supports communication with over 60 different PLC models, including: Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many more :

ABB AC500 (serial + Ethernet) , Allen Bradley (serial + Ethernet) , BACnet (serial + Ethernet) , Beckhoff Twincat ADS (Ethernet) , Codesys V2 (Ethernet) , Codesys V3 (Ethernet) , Emerson RX3i (Ethernet) , GE SNP (serial) , IDEC MicroSmart (Ethernet only) , IDEC MicroSmart (serial + Ethernet) , Kinco PLC (serial + Ethernet) , Mitsubishi FX (serial + Ethernet) , Mitsubishi Q (serial + Ethernet) , Modbus master and slave (serial + Ethernet) , Omron (serial + Ethernet) , Schneider (serial + Ethernet) , Siemens LOGO! (Ethernet) , Siemens S7-200 (serial + Ethernet) , Siemens S7-300/400 (serial + Ethernet) , Siemens S7-1200/1500 (Ethernet) , Unitronics (serial + Ethernet) , Xinje XC (serial) , Xinje XD (serial + Ethernet) , Xinje XD/XL (serial + Ethernet)

CE certified
Also available with UL certification (on request).
