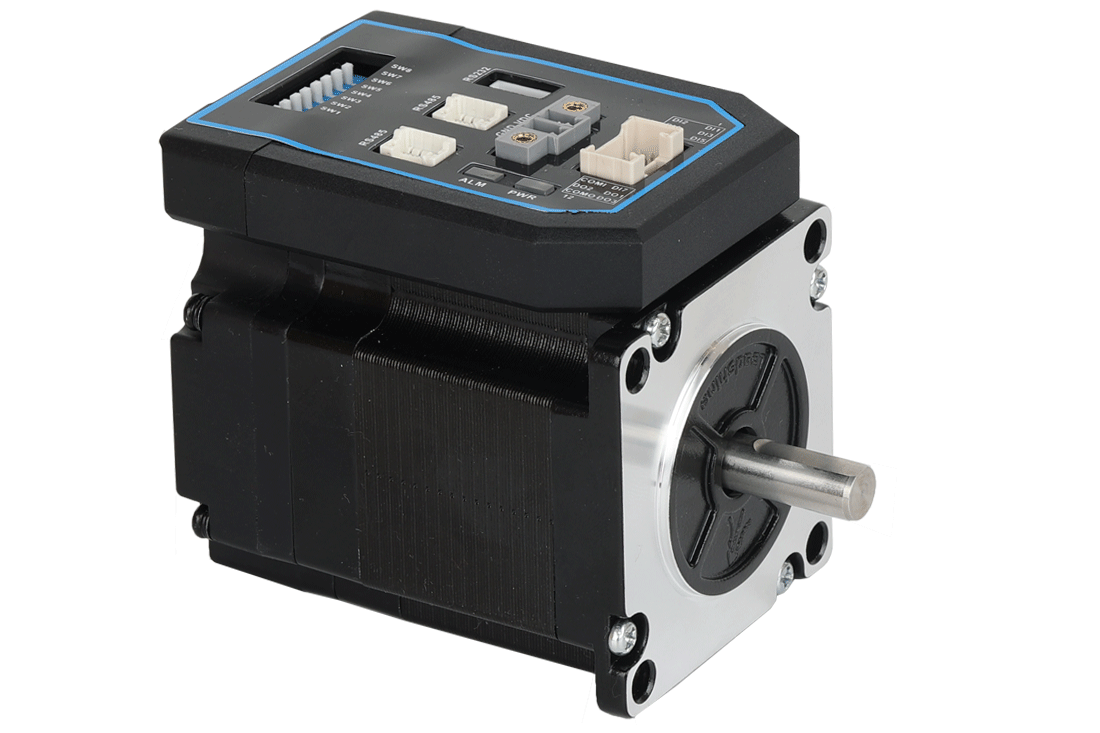

Hybrid servomotor 1.3 Nm - Nema 23 with integrated Modbus driver
2 phases - 14bit single-turn incremental encoder - 4000 points/turn
Shaft 8mm
Body length 78mm
Power supply 24 to 50 VDC
Integrated Modbus driver, 7 inputs 3 outputs
Standalone functions, 16 paths
Product Documents
Internal Reference:
iCS-RS2313
Specifications
| Brand | Leadshine |
| NEMA | 23 |
| Torque | 1.3 Nm |
| Number of phases | 2 |
| Shaft diameter | 8 mm |
| Step angle | 1.8° |
| Body length | 78 mm |
| Brake | Without brake |
| Min. Voltage | 24 V |
| Max. Voltage | 50 V |
| Interface | Modbus RS485 |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
