Kinco 48V brushless DC servo motor - integrated Modbus and EtherCAT driver - with brake
● Main power supply voltage: 24-60 VDC. Rated voltage: 48 V DC
● Rated power: 200W. Rated torque: 0.64 N.m.
● Rated power: 400W. Rated torque: 1.27 N.m.
● Rated power: 750W. Rated torque: 2.39 N.m.
● Single-turn magnetic encoder
● EtherCAT and Modbus RTU interface on RS485.
● 2 digital inputs and 1 digital output
● RS-232 serial interface for easy adjustment with Kinco Servo Plus
● Without brake
● Modbus RTU over RS485. Or standalone : Build-In 16 PR paths
● Dip switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
● With brake

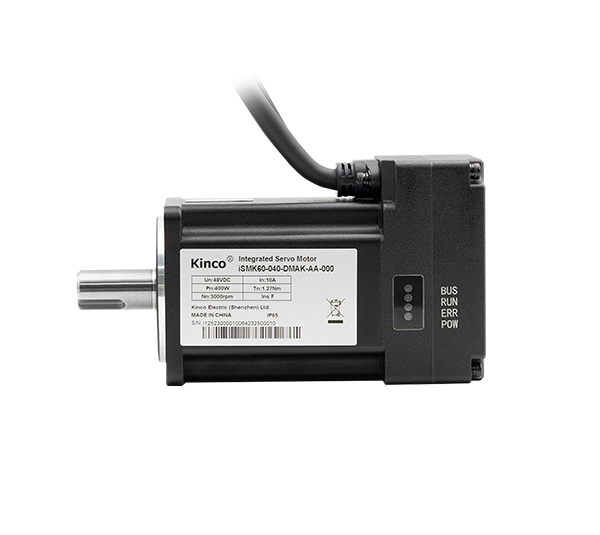

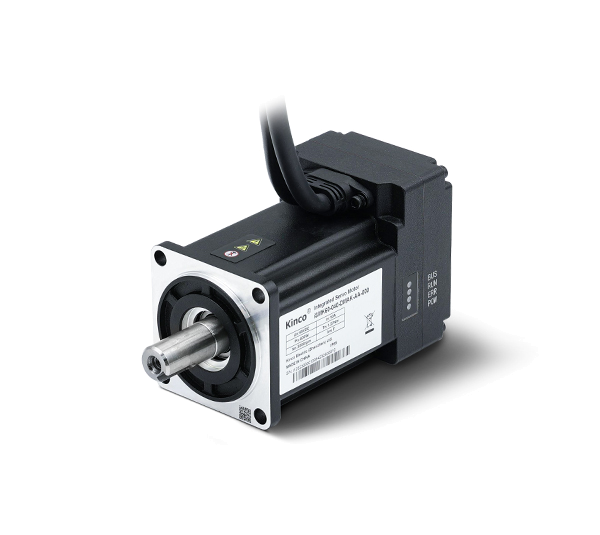

Kinco iSMK servomotors are a new generation of ultra-compact, all-in-one motors.
They integrate both a 48V DC brushless motor, with or without brake, as well as the associated drive.
This solution is also more economical, as it eliminates the need for specific encoder and power cables.
2 digital inputs are available on the drive (for Jog button, or limit switches, etc.) as well as 1 digital output (movement completed, or error signal, etc.)
Specifications
| Power | 200 W or 400 W or 750 W |
| Brand | Kinco |
| Voltage | 48 V |
| Brake | With brake |
| Min. Voltage | 24 V |
| Max. Voltage | 60 V |
| Interface | Modbus RS485, EtherCAT |
| Nominal speed | 3000 rpm |
