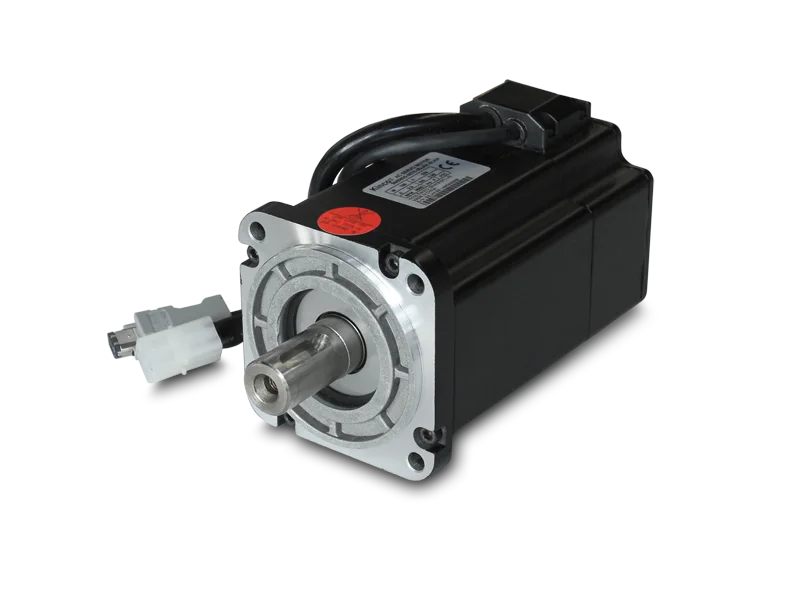

Kinco AC brushless servomotor 60mm - 200W - Series 3
Kinco 200W / 3000rpm brushless servo motor
Rated torque 0.64 Nm, Max 1.92 Nm
16-bit magneto-electric encoder
Connectors on cables (-GU / -KL-Y)
Shaft diameter: 14mm
| 200W brushless servomotor | Encoder type | Weight (Kg) | Length L(mm) |
| SMC60S-0020-30MAK-3LSU | Incremental magnetoelectric encoder | 1.2 |
91 +-1.5
|
| SMC60S-0020-30KAK-3LSU | Multiturn absolute encoder | 1.2 | 91 +-1.5 |
| Flange (mm) | 60 |
| Shaft diameter (mm) | 14 |
| DC bus voltage (V) | 300 |
| Continuous operating performance | Rated power 200 W |
| Nominal torque (Nm) | 0.64 |
| Nominal speed (Rpm) | 3000 |
| Rated current (A) | 1.4 |
| Maximum torque (Nm) | 1.92 |
| Max current (A) | 4.2 |
| Standstill torque (Nm) | 0.7 |
| Current at stop (A) | 1.5 |
| Winding resistance (ohm) | 11.2 |
| Winding inductance (mH) | 20.9 |
| Electrical time constant (ms) | 1.87 |
| Electrical time constant (ms) | 1.8 |
| Constant Reverse voltage (V/krpm) | 29 |
| Constant torque (Nm/A) | 0.48 |
| Motor moment of inertia (Kg.cm2) | 0.214 |
| Brake holding torque | 1.5 |
| Number of pole pairs | 3 |
| Maximum transient voltage du/dt (KV/us) | 8 |
| Insulation class | F |
| Maximum radial force (N) | 180 |
| Maximum axial force (N) | 90 |
| Cooling | Completely closed, uncooled |
| Protection sign | IP65 for motor body, IP54 for axes |
| Environmental operating conditions |
-20°C ~ 40°C (non-freezing)
|
| Humidity | Below 90% RH (non-condensing) |
| Keep away from active and combustible gases, oil splashes and dust | |
| Altitude | Max Altitude 4000m |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Encoder type | Incremental encoder or Multiturn absolute encoder |
