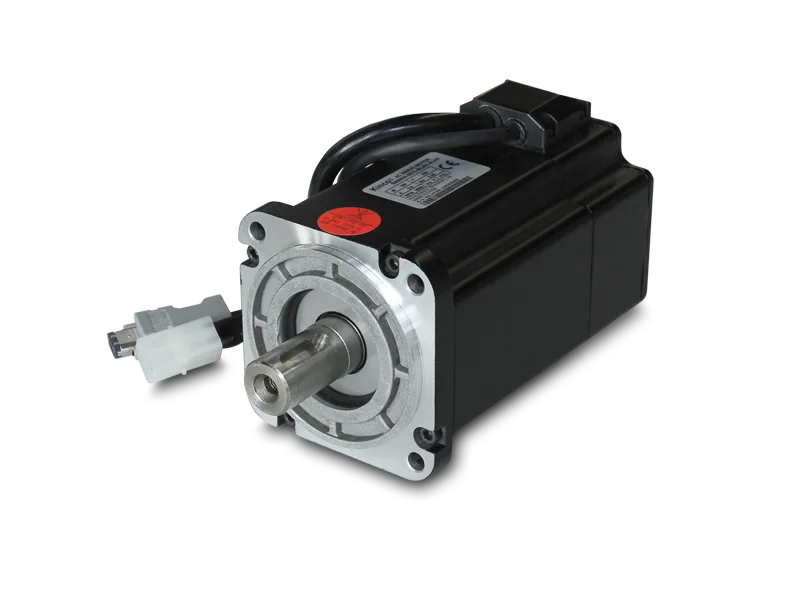

Kinco AC brushless servomotor 60mm - 400W - Series 3
Kinco 400W / 3000rpm brushless servo motor
Rated torque 1.27 Nm, Max 3.82 Nm
Incremental encoder (MAK), or absolute multi-turn (KAK), or single-turn 20bit (JAK)
Connectors on cables (-GU and -KL-Y)
Shaft diameter: 16mm
| 400W brushless servomotor | Encoder type | Weight (Kg) | Length L(mm) |
| SMC60S-0040-30MAK-3LSU | Incremental magnetoelectric encoder | 1.6 |
117 +-1.5
|
| SMC60S-0040-30JAK-3LSU | 20bit single turn encoder | 1.6 | 117 +-1.5 |
| SMC60S-0040-30KAK-3LSU | Multiturn absolute encoder | 1.6 | 117 +-1.5 |
| Flange (mm) | 60 |
| Shaft diameter (mm) | 14 |
| DC bus voltage (V) | 300 |
| Continuous operating performance | Rated power 400 W |
| Nominal torque (Nm) | 1.27 |
| Nominal speed (Rpm) | 3000 |
| Rated current (A) | 2.4 |
| Maximum torque (Nm) | 3.81 |
| Max current (A) | 7.2 |
| Standstill torque (Nm) | 1.4 |
| Current at stop (A) | 2.6 |
| Winding resistance (ohm) | 5.8 |
| Winding inductance (mH) | 11.5 |
| Electrical time constant (ms) | 1.98 |
| Mechanical time constant (ms) | 1.29 |
| Constant Reverse voltage (V/krpm) | 34 |
| Constant torque (Nm/A) | 0.562 |
| Motor moment of inertia (Kg.cm2) | 0.405 |
| Brake holding torque | 1.3 |
| Number of pole pairs | 3 |
| Maximum transient voltage du/dt (KV/us) | 8 |
| Insulation class | F |
| Maximum radial force (N) | 180 |
| Maximum axial force (N) | 90 |
| Cooling | Completely closed, uncooled |
| Protection sign | IP65 for motor body, IP54 for axes |
| Environmental operating conditions |
-20°C ~ 40°C (non-freezing)
|
| Humidity | Below 90% RH (non-condensing) |
| Keep away from active and combustible gases, oil splashes and dust | |
| Altitude | Max altitude 4000m |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Encoder type | 20 bits single turn encoder or Incremental encoder or Multiturn absolute encoder |
