External Linear Stepper Motor - Nema 17, 2mm pitch, 100 mm length
Linear axis External motor
Motor: Nema 17 - 0.26Nm - 12V / 0.4A - 4 wires
Screw: diameter 6.35mm - pitch 2mm - length 100 mm
POM (PolyOxyMethylene) nut
Product Documents
Internal Reference:
M17HSL0026-0602E-100
M17HSL0026-0602E-100 is a linear axis composed of a Nema 17 motor on the side, and a 100mm long screw with a diameter of 6.35mm and a 2mm pitch.
The screw is fixed to the motor, a POM (PolyOxyMethylene) fixing nut moves along the screw.

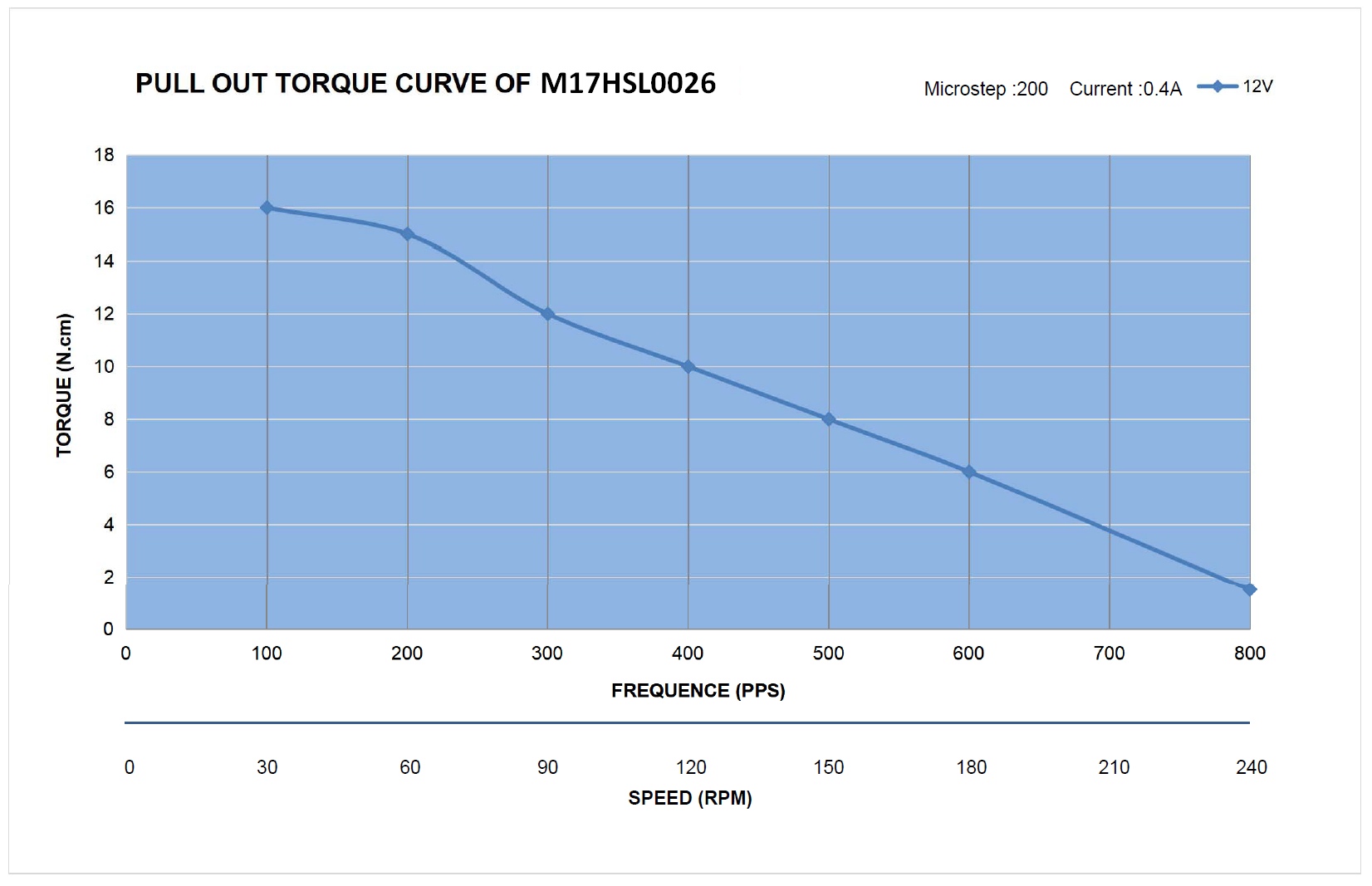

Electrical Specification
| Manufacturer Part Number | M17HSL0026-0602E-100 |
| Motor type | External Linear Stepper |
| Step Angle | 1.8° |
| Holding Torque | 26Ncm(36.8oz.in) |
| Rated Current/phase | 0.4A |
| Phase Resistance | 30ohms |
| Recommended Voltage | 12V |
| Inductance | 37mH±20%(1KHz) |
Physical Specifications
| Frame size | 42 x 42mm |
| Body Length | 34mm |
| Lead Screw Length | 100mm |
| Lead Screw Diameter | Φ6.35mm |
| Lead/Revolution | 2mm |
| Number of Leads | 4 |
| Lead length | 400mm |
| Weight | 250g |
Connection
| Wire Color | BLK | GRN | RED | BLU |
| Board connector | A | C | B | D |
Accessoires
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| NEMA | 17 |
| Torque | 0.26 Nm |
| Number of phases | 2 |
| Current per phase | 0.4 A |
| Step angle | 1.8° |
| Screw length | 100 mm |
| Screw diameter | 6.35 mm |
| Screw step | 2 mm |
| Screw type | Non captive |
