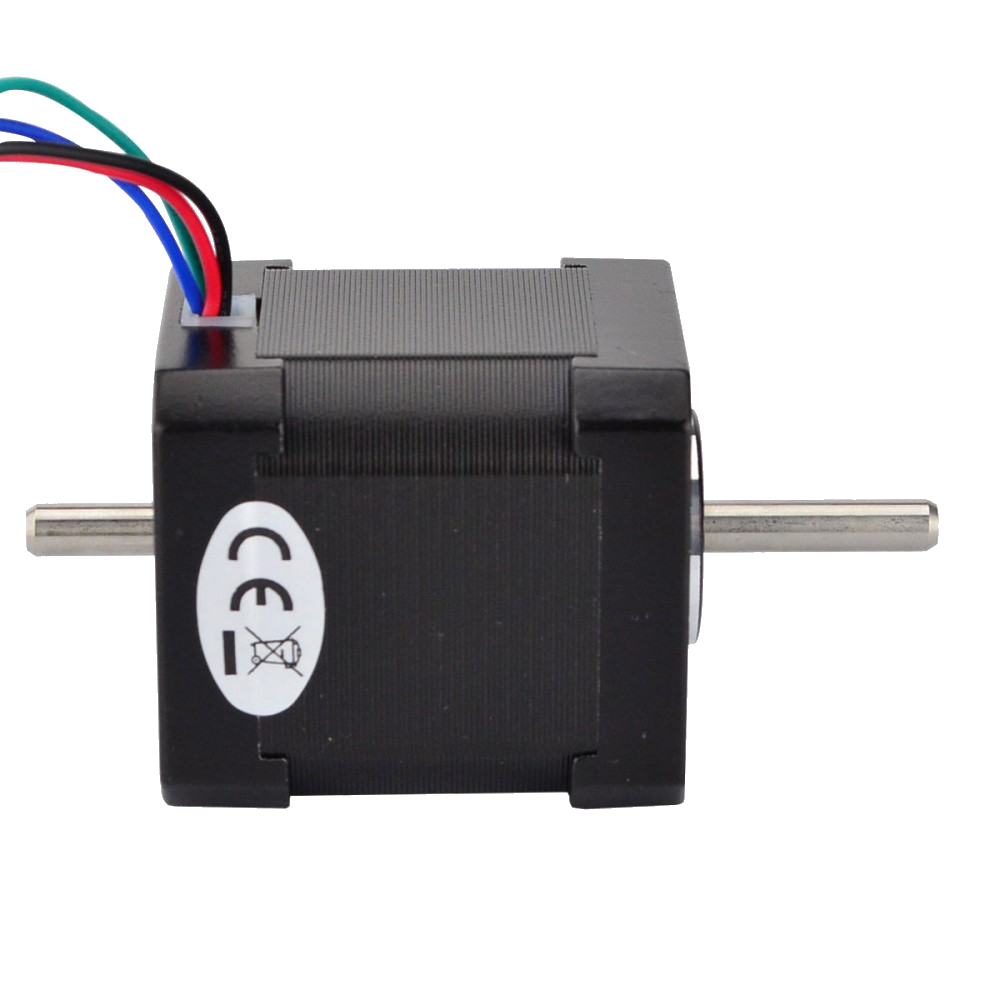

Dual Shaft 0.44Nm Bipolar Stepper Motor
The 42HS044D stepper motor is part of a line of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.
| Angular resolution | 1.8° |
| Step positioning accuracy | +5%(full step, no load) |
| Max. temperature | 80°CMax |
| Operating ambient temperature | -10°C -- +50°C |
| Insulation resistance | 100MΩmin.500VDC |
| Dielectric rigidity | 500VAC for 1 minute |
| Number of wires | 4 |
|
Model |
Wiring |
Holding torque (Nm) |
Phase current (A) |
Phase resistance (Ohm) |
Phase inducatance (mH) |
Rotor inertia g.cm² |
Weight Kg |
|
42HS047 |
Bipolar |
0.44 |
1.68 |
1.65 |
2.8 |
68 |
0.35 |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| NEMA | 17 |
| Torque | 0.44 Nm |
| Number of phases | 2 |
| Shaft diameter | 5 mm |
| Current per phase | 1.68 A |
| Phase resistance (Ohms) | 1.65 Ohms |
| Phase inductance (mH) | 2.8 mH |
| Rotor inertia | 68 g.cm2 |
| Shaft | Double |
| Body length | 48 mm |
| Weight | 390 gr |
