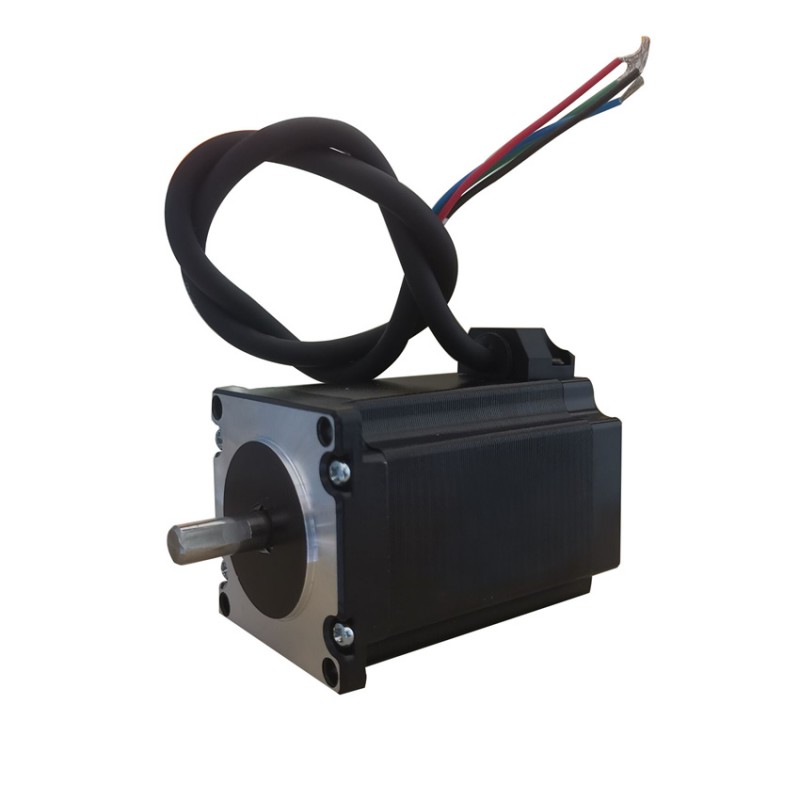

NEMA 23 Bipolar Stepper Motor - 2.6Nm
The 57CM26 is a 2-phase stepper motor offering a holding torque of 2.6 Nm.
It can be used in many industrial applications with excellent performance such as high precision, low heating and low vibration.
| 57CM26 | |
|---|---|
| Size: | NEMA 23 |
| Phases: | 2 |
| Step angle: | 1.8° |
| Precision: | ±0.9° |
| Body length | 84 mm |
| Number of wires | 4 |
| Holding torque | 2.6 N.m (369 oz-in) |
| Current | 5 A/Phase |
| Voltage | 2.2 V |
| Resistance | 0.44 Ω |
| Inductance | 2 mH |
| Rotor inertia | 0.52 kg-cm2 (0.00736 oz-in-sec2 ) |
| Shaft diameter | 8 mm (0.315 inch) |
| Shaft type | single |
| Weight | 1.4 kg |
| Insulation rating | B |
| Insulation resistance | Min 100 MΩ, 500 VDC) |
| Operating temperature | -10 - 50°C (14 - 122°F) |
| Temperature Rise (Max) | 80K |
| Radial backlash | Max 0.02 mm (with a 450grs load) |
| Axial backlash | Max 0.08 mm (with a 900grs load) |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Leadshine, Soprolec |
| NEMA | 23 |
| Torque | 2.6 Nm |
| Number of phases | 2 |
| Current | 5 A |
| Shaft diameter | 8 mm |
| Phase resistance (Ohms) | 0.44 Ohm |
| Phase inductance (mH) | 2 mH |
| Step angle | 1.8° |
| Rotor inertia | 0.52 kg-cm2 |
| Body length | 84 mm |
| Brake | Without brake |
| Weight | 1.4 kg |
