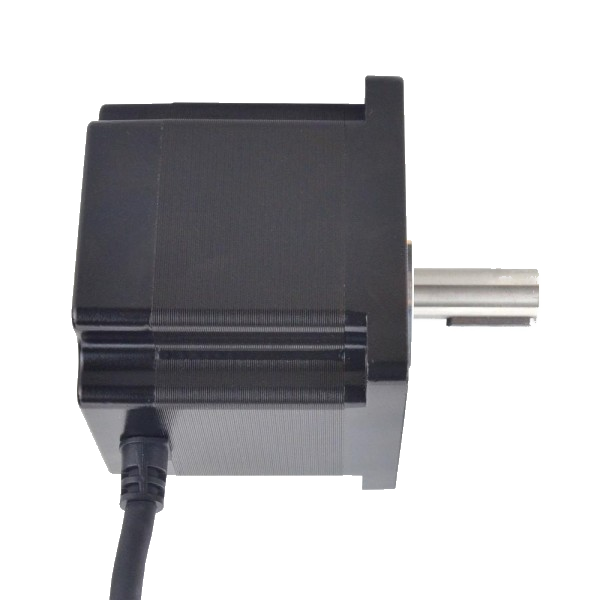

86HS45E Nema 34 - 4.8Nm stepper motor 6.0A

Stepper motor 4.8Nm / 6A
1.8 deg / step
2 phases, 4 wires
14mm shaft diameter with key, 37mm length
86x86x80mm
Wheight 2.3 kg

97.25 € Without Taxes 97.25 EUR 97.25 €

97.25 €

116.70 € 116.70 € with taxes

  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Step angle
  • Body length
  • Brake
  • Weight

This combination does not exist.

En rupture de stock

Product Documents

Datasheet 86HS45E

Internal Reference: M86HS45E

4.8Nm bipolar stepper motor


The 86HS45E stepper motor is part of a family of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.

Angular resolution 1.8°
Step positioning accuracy +5%(full step, no load)
Max temperature 80°C max
Operating temperature -10°C -- +50°C
Insulation resistance 100MΩmin.500VDC
Dielectric rigidity 500VAC for 1 minute
Radial shaft backlash 0.06 Max.(under a 450grs load)
Axial shaft backlash 0.08 max.(under a 450grs load)
Number of wires
4 wires

Model

Wiring

Holding torque
Nm

Phase current (A)

Phase resistance
(Ohm)

Phase inductance (mH)

Rotor inertia g.cm² (Oz-in-sec²) Wheigth Kg

86HS45E

Unipolar

4.8

6.0

0.42±10%

3.5±20%

1000 (0.0142) 2.3




Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.


Specifications

NEMA 34
Torque 4.8 Nm
Number of phases 2
Current 6 A
Shaft diameter 14 mm
Phase resistance (Ohms) 0.42 Ohms
Phase inductance (mH) 3.5 mH
Step angle 1.8°
Body length 80 mm
Brake Without
Weight 2.3 kg
