F2 Series — Premium HMI Platform
From 7" to 21.5", the F2 Series is Kinco's high-end touchscreen platform for advanced manufacturing — built for fast-changing recipes, large alarm databases, multi-user login and remote maintenance.
Built for advanced manufacturing, not just visualization
F2 is Kinco's step up from the standard G2 platform — faster hardware, better connectivity, and a software stack built for regulated, data-heavy production lines.
Faster on every spec
1.8GHz quad-core CPU vs. 1.5GHz on Kinco's own G2, 1GB RAM vs 512MB, 8GB storage vs 4GB.
Dual Ethernet, standard
Dual Ethernet ports plus dual/triple serial as standard, with tag-based communication to Siemens, Omron and Beckhoff PLCs.
Built for harsh panels
Metal housing, PCB conformal coating and built-in power isolation — plus CE and UL certification for export.
DToolsPro software platform
Local PostgreSQL database, e-signature, built-in web browser, VNC, and MQTT/OPC-UA/M-IoT connectivity out of the box.
Multi-user, audit-ready
RFID login, e-signature secondary confirmation, and process data traceable for 3+ years.
Remote maintenance
EdgeAccess2 (EA) gives your team and Kinco's support remote diagnostic access without a site visit.
One platform, six screen sizes
| Size | Model(s) | Notable spec |
|---|---|---|
| 7" | F2070E2, F2070HE | Resistive touch, entry point of the F2 range |
| 10.1" | F2100E2, F2100HE2-PX | MAX variant (2GB+64GB); -PX = capacitive touch |
| 12.1" | F2121E2 | 85° viewing angle, 500cd/m² brightness |
| 15" | F2150E2 | Top contrast in the range: 2500:1, 70,000h backlight life |

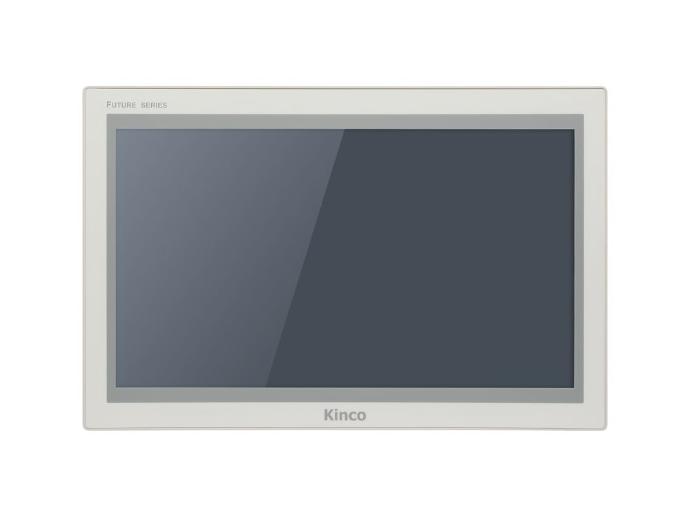

| 15.6" | F2156-TX, F2156E2, F2156E2-PX | 1920×1080 Full HD; -TX = physical buttons + capacitive touch |
| 21.5" | FH2215E2-PX | Next tier up (FH platform): octa-core 2.2GHz, 4GB+32GB |
Where F2 is already running production lines
Winding, electrolyte-filling and tray-changer machines.
Cell stringer and film laminator equipment.
Annealing furnaces and single-crystal furnace control.
Packaging and labeling lines requiring traceability.
Who normally buys F2
OEM machine builders in advanced manufacturing needing fast process iteration, large alarm/variable databases, multi-user/RFID login, audit trails, and multi-brand PLC connectivity.
How F2 compares
Based on a 15.6" class comparison across CPU, memory, interfaces and certification.
| Kinco F2 | Proface FE9000 | Weintek cMT | Siemens Smart Line |
|---|---|---|---|
| Quad-core 1.8GHz | Quad-core 1.2GHz | Quad-core 1GHz | Single-core 600MHz |
| 1GB + 8GB | 1GB + 8GB | 1GB + 4GB | 128MB + 256MB |
| Dual Ethernet + dual/triple serial | Dual Ethernet + dual/triple serial | Dual Ethernet + serial + CAN | Single Ethernet + single/dual serial |
| CE & UL | CE | CE & UL | CE |
| Indicative price (15.6") | Comparable | ~25–40% higher | ~2.5–3× higher |
