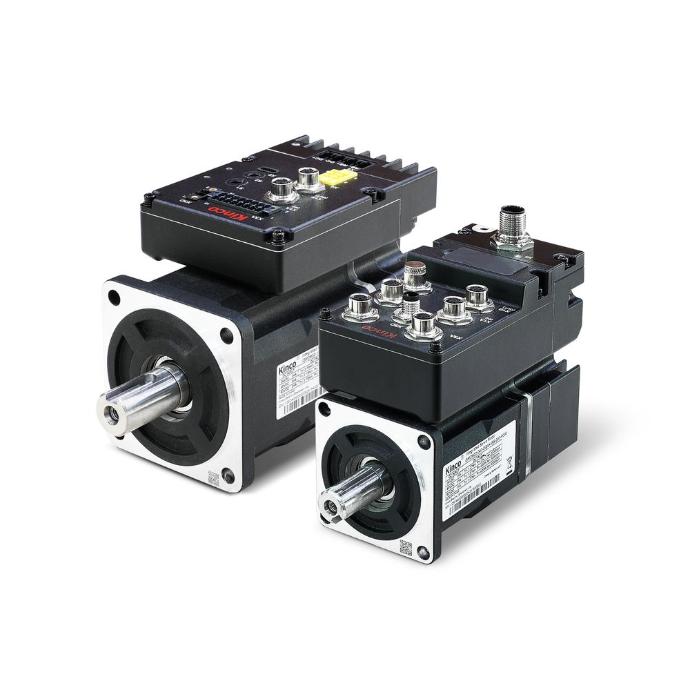

iSMD Integrated Servo Motor-Drive
One motor. One drive. One cable run. iSMD merges the servo motor, drive electronics and absolute encoder into a single compact unit — so your machine panel gets smaller, your wiring gets simpler, and your build gets faster.
Everything a split servo+drive setup needs — in one housing
iSMD is Kinco's flagship integrated servo, designed to cut cabinet space, wiring cost and commissioning time without giving up performance.
Compact by design
Saves roughly 50% of panel/cabinet space compared with a traditional split motor + external drive setup.
Half the cabling
Centralized cabling architecture eliminates the separate motor-to-drive power and feedback cables.
Power-loss-proof positioning
Multi-turn absolute encoder remembers the axis position after a power failure — no re-homing on restart.
Built to standard
CE and UL obtained; safe-torque-off (STO) function evaluation in progress.
Scalable platform
One architecture spans 400W to 1000W, IP20 or IP65, with Modbus, CANopen, EtherCAT or Profinet.
Proven track record
Kinco cites cumulative sales of over 1 million integrated-servo units worldwide.
Where iSMD is already at work
Flexible lines in space-constrained cabinets, including IP65 wash-down areas.
Shuttle and pallet-shuttle lift axes, conveyor lines and sortation systems.
Waist-lift actuation axes where footprint and weight are critical.
Any build where cabinet space and wiring cost are under pressure.
Who normally buys iSMD
OEM machine builders, AGV/AMR and logistics-robot manufacturers, humanoid-robotics companies, and system integrators replacing split servo setups.
iSMD specifications
| Configuration | All-in-one motor + drive + encoder DC servo actuator (i-Kinco family). |
|---|---|
| Power ratings | 400W / 750W / 1000W (S1 continuous duty). |
| Frame / flange sizes | 40mm / 60mm (80×80mm) / 80mm / 130mm. |
| Supply voltage | DC 24–60V (wide voltage input). |
| Protection rating | IP20 or IP65, selectable. |
| Communication | Modbus, CANopen, EtherCAT, Profinet. |
| Encoder | Multi-turn absolute (no re-homing after power loss); battery or battery-free options. |
| Certification | CE, UL obtained; STO safety function evaluation in progress. |
| Reference configurations | iSMD60D-040-DQAK-AS-000 · iSMD80-075-DQAK-AS-000 · iSMD80D-100-DQAK-AS-000 · iSMD80D-075-DQBK-AA-000 |
