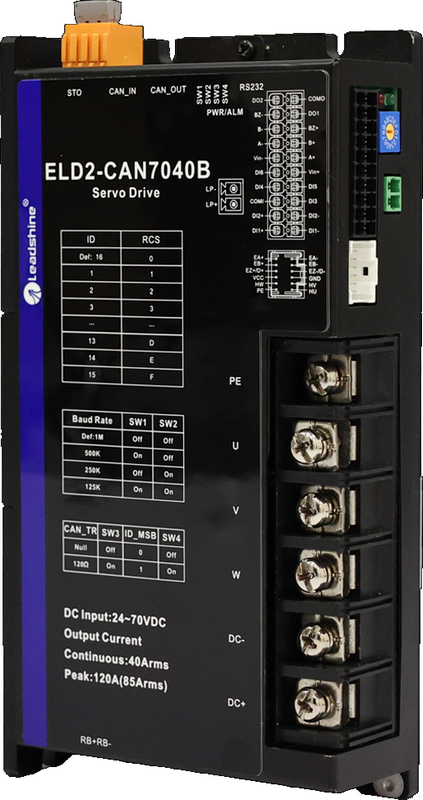

ELD2-CAN7040B
● Main power voltage: 24-70VDC
● Output current: 40Arms continuous; 120A peak
● Direct brake output: 24VDC/1A
● Pulse+Direction, analog input
● Modbus RTU over RS485. Build-In 16 PR paths
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● STO function safety
● RS-232 serial interface for easy tuning with Motion Studio
Download the dedicated setting software: Leadshine Motion Studio
| Drive model | ELD2-CAN7040B | |
| Size(mm) | 194*103*41 | |
| Rated power(kW) | 1.5 | |
| Rated current(Arms) | 40 | |
| Peak current(Apeak) | 120 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 40Arms （≤48Vdc） | |
| 28Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | DC24-70 |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | STO | |
| Protection rank | IP20 |
Spécifications
| Marque | Leadshine |
| Axes | 1 Axe |
| Entrées analogiques | 1 |
| Frein | Avec frein |
| Tension mini | 24 V |
| Tension maxi | 70 V |
| Courant maxi | 40 A |
| Interface / Bus | CANopen |
