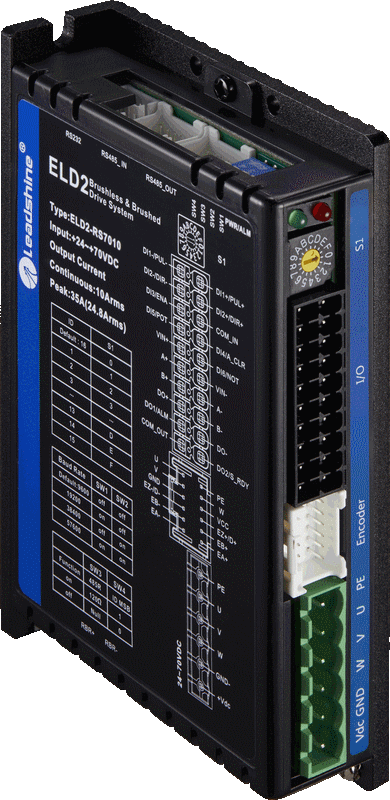

ELD2-RS7010 Variateur Brushless DC 24-70V 10A

ELD2-RS7010 Variateur Brushless DC 24-70V 10A - RS485/Pulses+Dir

159,20 € HT 159.20000000000002 EUR 159,20 €

159,20 €

191,04 € 191,04 € TTC

  • Marque
  • Tension
  • Entrées analogiques
  • Courant maxi
  • Interface / Bus

Cette combinaison n'existe pas.

Téléchargements :

Manuel ELD2-RS
Using Modbus with Leadshine RS Drives

Référence interne: ELD2-RS7010


ELD2-RS7010

● Main power voltage: 24-70VDC

● Output current: 10Arms continuous; 35A peak

● Pulse+Direction, analog input

● Modbus RTU over RS485. Build-In 16 PR paths

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● RS-232 serial interface for easy tuning with Motion Studio

Téléchargez le logiciel de paramétrage: Leadshine Motion Studio

Drive modelELD2-RS7010
Size(mm)118*79.5*25.5
Rated power(kW)0.4
Rated current(Arms)10
Peak current(Apeak)35
Main powerVoltage(V)DC24~70
Current(A)10Arms (≤48Vdc)
7Arms(>48Vdc)
Logic powerVoltage(V)——
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe function——
Protection rankIP20



Spécifications

Marque Leadshine
Tension 24 V
Entrées analogiques 1
Courant maxi 10 A
Interface / Bus Modbus RTU / RS485
