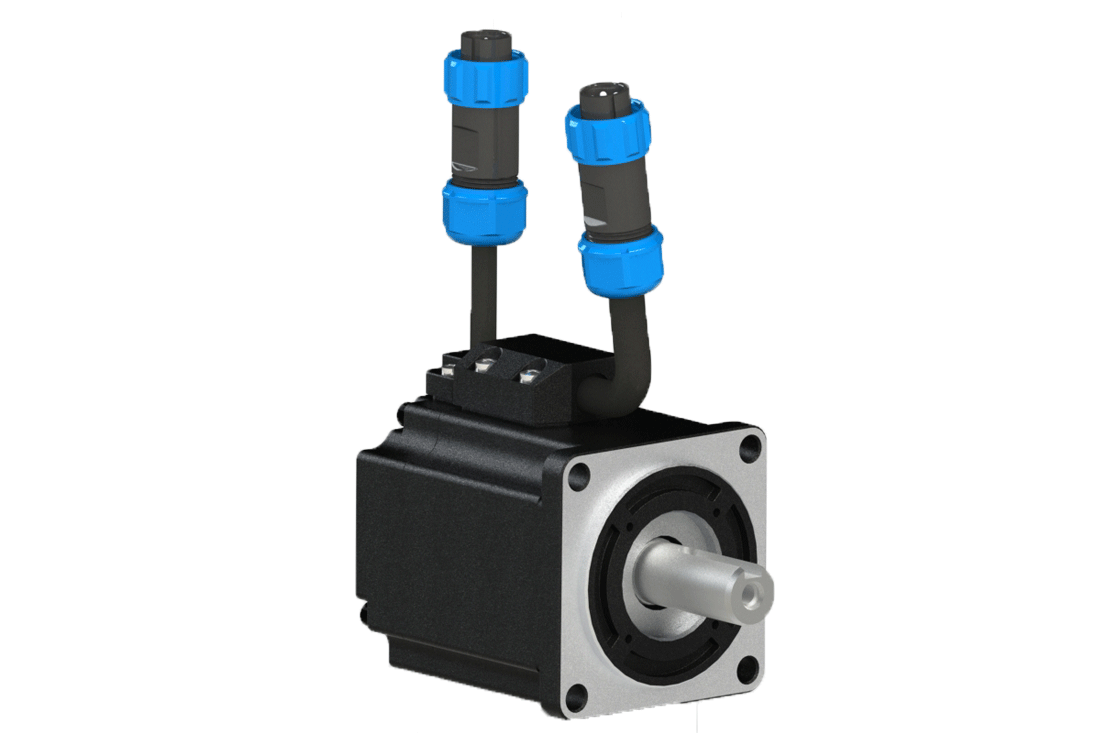

ELVM4010V48FH-M17-HD Moteur Brushless DC 48V - 100W
Moteur Brushless DC 48V 100W - 3000rpm - 0.32Nm (0.96Nm en pointe)
Codeur17 bit. Faible inertie.
ELVM4010V48FH-M17-HD
● Tension nominale 48 V, puissance nominale 100 W
● Au carré de 40 mm, couple nominal 0.32 N·m, vitesse nominale 3 000 tr/min
● Pas de frein
● Classe d'isolation : Classe F
● Codeur absolu multitour magnétique 17 bits
● IP65
| Modèle | ELVM6020V48FH-M17-HD |
| Frame Size (mm) | 40 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 100 |
| Rated Torque (N.m) | 0.32 |
| Peak Torque (N.m) | 0.96 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 5.7 |
| Peak Current (Amp) | 17.7 |
| Torque Constant (N.m/Amp) | 0.114 |
| Back EMF Constant (V/krpm) | 3.8 |
| Resistance (Ω) | 0.55 |
| Inductance (mH) | 0.33 |
| Inertia (kg*m2*10-4) |
0.062
|
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 78 |
| Max axial load(N) | 54 |
| IP Rating | IP65 |
| Weight (Kg) | 1 |
Spécifications
| Marque | Leadshine |
| Couple | 0.32 Nm |
| Puissance | 100 W |
| Tension | 48 V |
| Diamètre de l'arbre | 8 mm |
| Frein | Sans frein |
| Vitesse nominale | 3000 rpm |
| Type de codeur | 17 bit absolu multitours magnétique |
