Easy Servo Drives 230VAC / 6.0A - ES-DH2306

Easy Servo Drives 230VAC / 6.0A - ES-DH2306

The ES-DH2306 driver works with voltages from 150 to 230VAC and delivers an output current from 0.5 to 6.0 A depending on the load.

It operates in a closed loop and therefore provides real-time position control with 3-phase stepper motors equipped with encoders.

More details...

324,00 € tax incl.

270,00 €tax excl.

ES-DH2306

Features

  • Step and direction control
  • Closed position loop for no loss of movement synchronization
  • Operating voltage: 150 to 230VAC VDC
  • Load based output current of 0.5 - 6.0 A
  • High torque at starting and low speed
  • No torque reservation
  • High stiffness at standstill
  • Significantly reduced motor heating
  • Smooth motor movement and extra low motor noise
  • Quick response, no delay and zero settling time
  • No loss of steps, no hunting, no overshooting
  • Plug-and-play and no tuning for most applications
By applying servo control on easy servo motors (stepper motors with encoders), Leadshine ES-DH2306 easy servo drive combines features of both open loop stepper drives and brushless AC servo drives. It takes step and direction control commands, direct 220/230 VAC input voltage, and outputs load-based current up to 6.0A. It is capable of powering 3-phase easy servo motors of NEMA 34/42, closing the position loop, and eliminating position tracking errors in real time.

Similar to brushless AC servo drives, an ES-DH2306 easy servo drive can take encoder feedback from driven high voltage easy servo motors and close the position loop to eliminate possibility of lose of movement synchronization. Therefore, the position loop between the motor and drive is fully closed and "lose of step" in open loop stepper systems is totally eliminated. The ES-DH2306 easy servo drive adopts advanced control algorithm and just outputs "just enough" to the driven motor to to meet the torque requirement. So, easy servo systems driven by ES-DH2306 can response and accelerate much faster than open loop stepper systems in high precision and with extra low heating, extra smooth, much higher torque and speeds.

Compared with conventional brushless servo systems, easy servo / closed loop systems powered by ES-DH2306 servo drive can output much higher low to medium speed torque (1-2000 RPM). There is no overshooting, no hunting, and zero settling time. Also, no tuning and plug-and-play for almost all applications makes ES-DH2306 powered easy servo/closed loop systems give advantages over conventional brushless servo systems.

The ES-DH2306 easy servo drive takes direct ES-DH2306 voltage input without the need of a VDC power supply. Each drive has a built-in LED panel to allow easy custom configuration, fine tuning, and motion real time status monitoring. In addition, ES-DH2306 can be easily configured as an open loop stepper drive to power three phase stepper motors.
Specifications :
Model: ES-DH2306
Phase: 3
Control Mode: Step & Direction
Max Input Frequency: 200KHz
Encoder Feedback: Yes. Fully close the loop between the drive and drive motor
Input Voltage Range: 150 - 240 VAC
Peak Current: 6.00 A
Software Cofig Resolution Range: 200 - 102,400 (increased by 200)
Default Step Resolution: 4000
Default Holding Current Percentage: 20 %
Communication Type: RS232
Pulse enabled at: Rising edge
Isolation Resistance: 500M Ohm
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temporature: 0-50°C
Humidity: 40–95% RH
Operating Temporature: 0-70°C
Vibration: 5.9 m/s2 Max
Storage Temporature: -20-65°C
Specification: 6.69 X 5.51 X 2.76 Inches
Weight: 3.96 lbs

Typical Connections

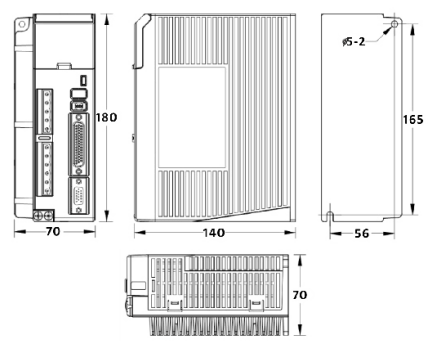

Mechanical Specifications (unit: mm    1 inch = 25.4 mm)
