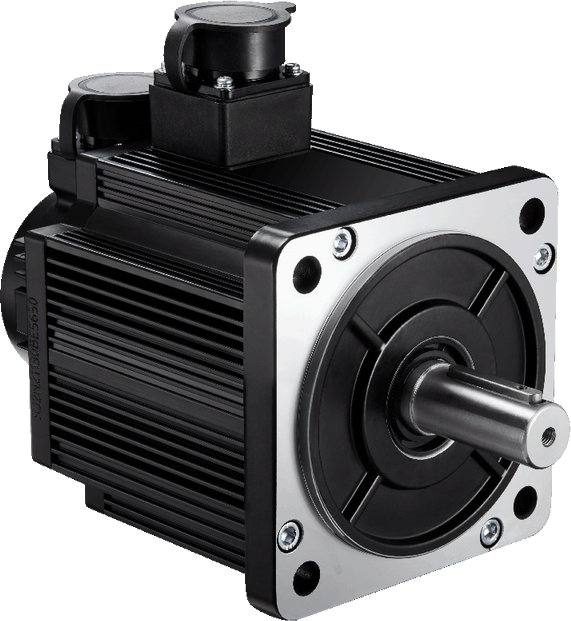

ELVM130200V48FM-M17-HD sans frein
ELVM130200V48EM-M17-HD avec frein
- Tension nominale 48VDC, puissance nominale 2000W
- Cadre 130 mm, couple nominal 6.4 Nm, vitesse nominale 3 000 tr/min
- Avec ou sans frein
- Classe d'isolation : Classe F
- Codeur magnétique absolu multitours 17 bits
- IP65
| Modèle | ELVM130200V48EM-M17-HD |
| Frame Size (mm) | 130 |
| Rated Voltage (Vac) | 48 |
| Rated Power (W) | 2000 |
| Rated Torque (N.m) | 6.4 |
| Peak Torque (N.m) | 16 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 48.5 |
| Peak Current (Amp) | 121.3 |
| Torque Constant (N.m/Amp) | 0.13 |
| Back EMF Constant (V/krpm) | 8.5 |
| Resistance (Ω) |
0.022 |
| Inductance (mH) |
0.088 |
| Inertia (kg*m2*10-4) | 17.71 |
| Poles | 10 |
| Encoder Type | 17bit absolute |
| IP Rating | IP65 |
| Weight (Kg) | 6.5/7.9 |
Spécifications
| Frein | Sans frein ou Avec frein |
| Marque | Leadshine |
| Couple | 6.4 Nm |
| Puissance | 2000 W |
| Courant | 48.5 A |
| Tension | 48 V |
| Diamètre de l'arbre | 22 mm |
| Vitesse nominale | 3000 rpm |
| Taille du carré | 130 mm |
| Type de codeur | 17 bit absolu multitours magnétique |
