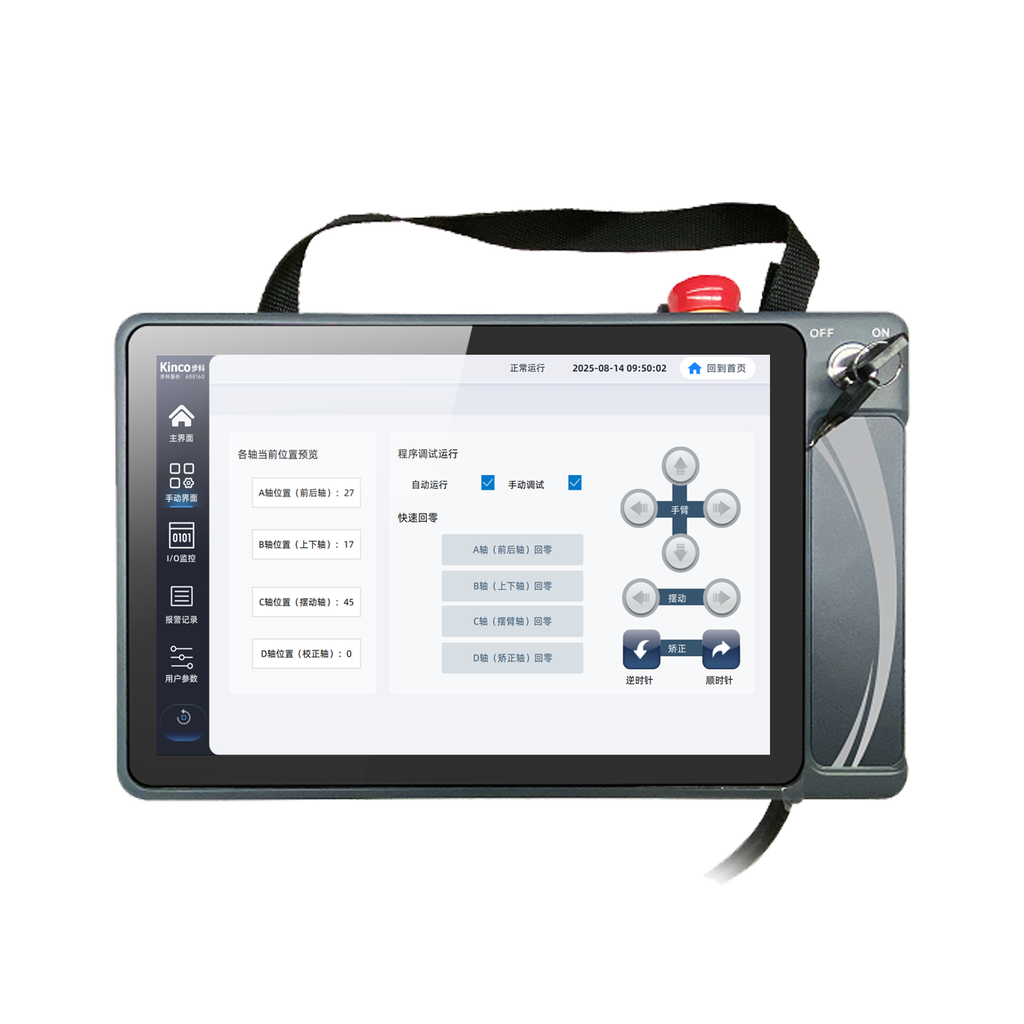

10" HMI for handheld - Ethernet + "Dead man" function + double channel Emergency switch
Industrial Touchscreen
Capacitive touch. 1920 × 1200 pixel resolution, 16.77 million colors
Optionnal 16 programmable function keys
1 dual-channel emergency stop button
Dual-channel grip switch (with a "dead man's switch" button underneath)
1 three-position selector switch
USB host port
RS232 and RS485 ports
10/100 Ethernet port
10-meter cable
23.2 to 26.4V DC power supply
Dimensions: 300.7 × 187.6 × 69.7 mm
IP62 enclosure
For use with DTools Pro development software
Technical specifications:
- 10" TFT capacitive touchscreen
- Full HD+, 1920 × 1200 pixels, 16.77 million true colors
Standard configuration: 1 dual-channel emergency stop switch
Grip switch = dual-channel "dead-man" function button (underside)
Key lock
16 programmable function keys (optional)
- Full Ethernet/Internet connectivity (DHCP, NTP, FTP, VNC client and server, MySQL, etc.)
The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet and many more :
ABB AC500 (serial + Ethernet) , Allen
Bradley (serial + Ethernet) , BACnet
(serial + Ethernet) , Beckhoff Twincat
ADS (Ethernet) , Codesys V2 (Ethernet)
, Codesys V3 (Ethernet)
, Emerson RX3i (Ethernet) ,
GE SNP (serial) , IDEC MicroSmart
(Ethernet only) , IDEC MicroSmart (serial
+ Ethernet) , Kinco PLC (serial +
Ethernet) , Mitsubishi FX (serial +
Ethernet) , Mitsubishi Q (serial +
Ethernet) , Modbus master and slave
(serial + Ethernet) , Omron (serial +
Ethernet) , Schneider (serial + Ethernet)
, Siemens LOGO! (Ethernet)
, Siemens S7-200 (serial + Ethernet)
, Siemens S7-300/400 (serial + Ethernet)
, Siemens S7-1200/1500 (Ethernet)
, Unitronics (serial + Ethernet) ,
Xinje XC (serial) , Xinje XD (serial +
Ethernet) , Xinje XD/XL (serial +
Ethernet)
Portable, mobile terminal with a standard 10m cable.
It offers broader application possibilities, enhanced safety, and greater flexibility in selection.
DTools Pro V1.9 software download
Specifications
| Buttons | 0 or 16 |
| Brand | Kinco |
| Voltage | 24 V |
| Screen size | 10 pouses |
| Interface | USB, Ethernet, Modbus RS485 |
| Display resolution | 1920x1200 |
| Cable length | 10 m |
