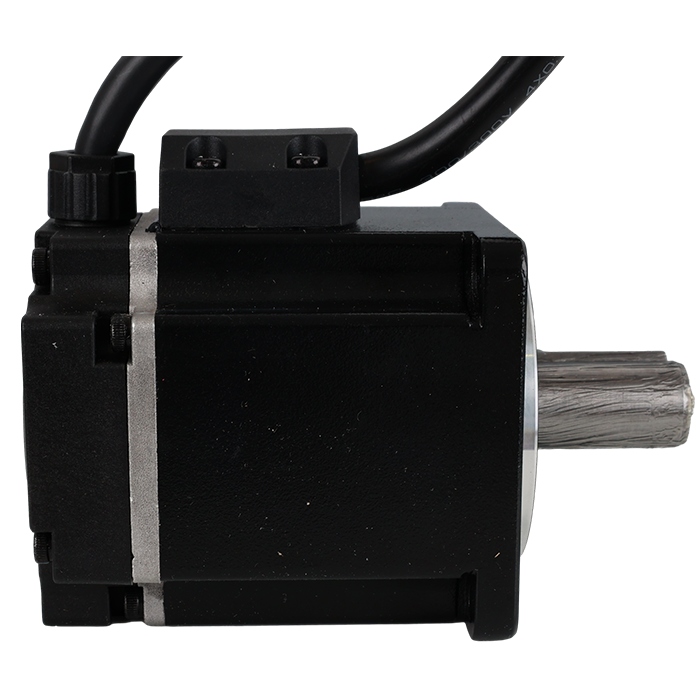

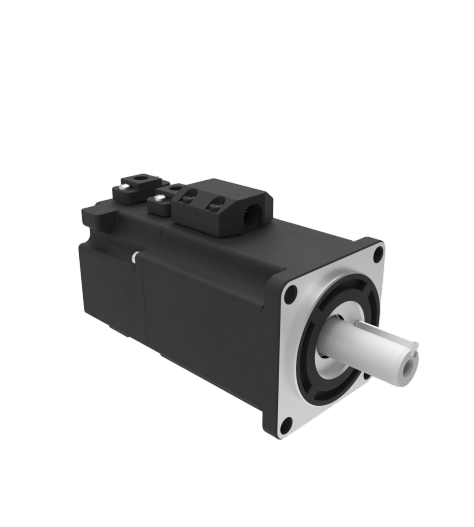

ELVM6040V24EH-M17-HD : avec frein
● Tension nominale 24 V, puissance nominale 400 W
● Au carré de 60 mm, couple nominal 1,27 N·m, vitesse nominale 3 000 tr/min
● Classe d'isolation : Classe F
● Codeur absolu multitour magnétique 17 bits
● IP65
| Modèle | ELVM6040V24EH-M17-HD
|
| Frame Size (mm) | 60 |
| Rated Voltage (Vac) | 24 |
| Rated Power (W) | 400 |
| Rated Torque (N.m) | 1.27 |
| Peak Torque (N.m) | 3.81 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 19.9 |
| Peak Current (Amp) | 61.7 |
| Torque Constant (N.m/Amp) | 0.068 |
| Back EMF Constant (V/krpm) | 4.1 |
| Resistance (Ω) | 0.07 |
| Inductance (mH) | 0.14 |
| Inertia (kg*m2*10-4) | 0.58 |
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 245 |
| Max axial load(N) | 74 |
| IP Rating | IP65 |
| Weight (Kg) | 1.3 / 1.7 |
Spécifications
| Marque | Leadshine |
| Couple | 1.27 Nm (3.81 Nm en pointe) |
| Puissance | 400 W |
| Courant | 20 A |
| Tension | 24 V |
| Diamètre de l'arbre | 14 mm |
| Frein | Sans frein |
| Vitesse nominale | 3000 rpm |
| Type de codeur | 17 bit absolu multitours magnétique |
